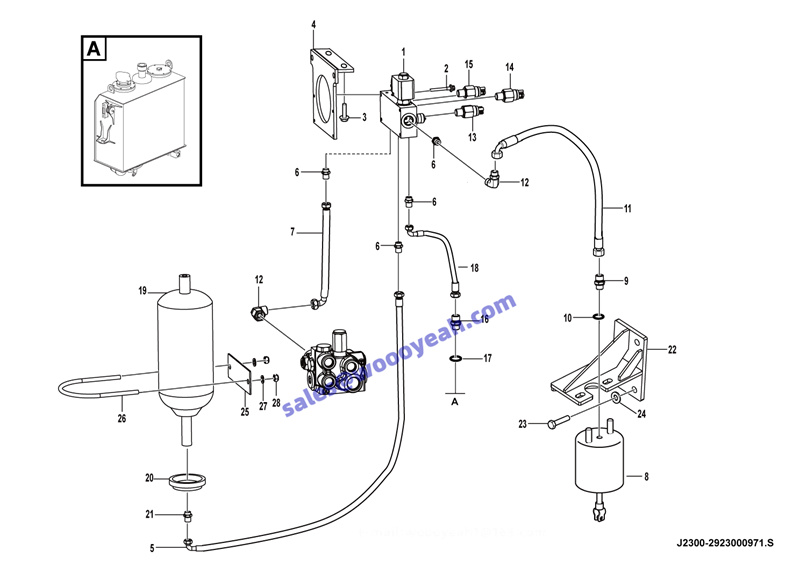

J2300-2923000971.S:驻车制动总成-71 parking brake syetem

1 制动阀快 BRAKE VALVE 4120004342 Y 1
2 螺钉GB70.1-M545flZnyc-8.8-480 SCREW 4014000531 Y 4 3 螺栓GB16674.1-M1020flZnyc-8.8-480 SCREW 4011001294 Y 2
4 制动阀块固定板 PLATE 29230008961 Y 1
5 软管LGB128-405085 HOSE 4041001828 Y 1
6 接头GE12L3/4UNFOMDA3C NIPPLE 4190000149 GE12L3/4UNFOMDA3C Y 5
7 软管LGB128-405045 HOSE 4041001847 Y 1
8 液压驻车制动缸 CYLINDER 4120002712 Y 1
9 直接头LGB155-01618 NIPPLE 4041000824 Y 1
10 O形圈GB3452.1-17.52.65G O-RING 4030000511 Y 1 11 软管LGB128-405042 HOSE ASSEMBLY 4041001836 Y 1 12 接头EW12LOMDA3C NIPPLE 4190000141 Y 2 13 停车制动低压报警开关 PRESSURE SWITCH 4120004312 Y 1 14 紧急制动开关 PRESSURE SWITCH 4120004314 Y 1 15 行车制动低压报警开关 PRESSURE SWITCH 4120004313 Y 1 16 直接头LGB120-01818 NIPPLE 4041000766 Y 1 17 O形圈LGB168-11524 O-RING 4041000768 Y 1 18 软管LGB125-005100 HOSE ASSEMBLY 4041000660 Y 1 19 蓄能器PED1-1.0L-31.5 ACCUMULATOR 4120002705 Y 1 20 缓冲套 RUBBER SLEEVE 29120017111 Y 1 21 接头GE12LR3/4EDOMDA3C NIPPLE 4120002703 Y 1 22 驻车制动油缸支架 BRACKET 29230009141 Y 1 23 螺栓GB5783-M2040flZnyc-8.8-480 SCREW 4011001326 Y 2
24 垫圈GB97.1-20flZnyc-300HV-480 WASHER 4015000434 Y 2
25 橡胶垫 RUBBER MAT 29230008271 Y 1
26 U形螺栓 U-BOLT 29120017101 Y 1
27 垫圈GB97.1-8flZnyc-300HV-480 WASHER 4015000430 Y 2
28 螺母GB889.1-M8flZnyc-8-480 NUT 4013000384 Y 2
