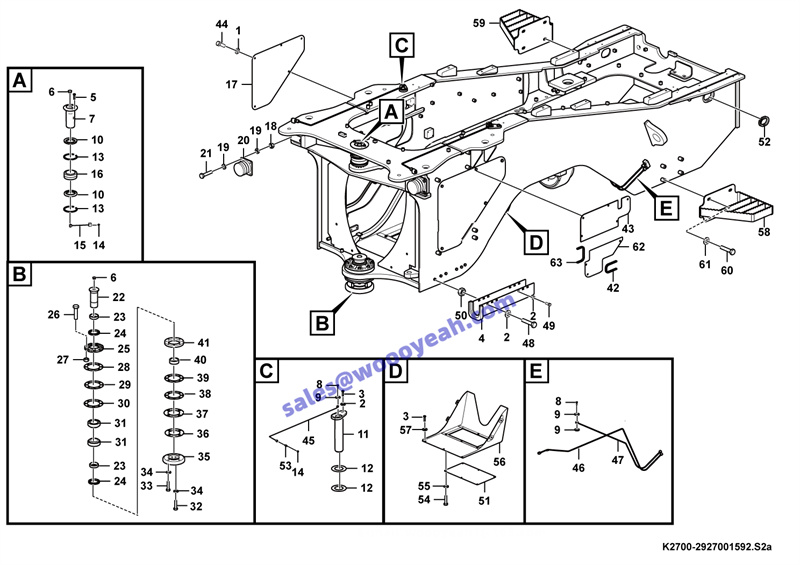

K2700-2927001592.S2a:后车架附件-76 Rear frame system

1 垫圈GB96.1-10flZnyc-300HV-480 WASHER 4015000426 Y 13
2 垫圈GB97.1-12flZnyc-300HV-480 WASHER 4015000428 Y 12
3 螺栓GB5783-M1225flZnyc-8.8-480 SCREW 4011001241 Y 9 4 支撑板 BRACKET 29270015941 Y 1 5 螺栓GB16674.1-M1025flZnyc-8.8-480 SCREW 4011001299 Y 2
6 塑料塞 PLASTIC PLUG 29270009421 Y 2
7 上铰接销 PIN 29270010071 Y 1
8 通油螺栓 BOLT 29250000291 Y 5
9 垫片 SHIM 29250000301 Y 15
10 防尘圈 SEALING RING 29270010081 Y 2
11 转向销轴 PIN 29270010271 Y 2
12 垫片LGB303-45801 SHIM 4043000374 Y 4
13 挡圈GB893.1-120-65Mn RETAINING RING 4015000270 Y 2
14 油杯JB7940.1-M101 LUBRICATING NIPPLE 4030000065 Y 6 15 油管 LUBRICATING PIPE 29270014461 Y 1 16 关节轴承GB9163-GE80ES SPHERICAL PLAIN BEARING 4021000243 Y 1 17 板 COVER PLATE 29270015991 Y 1 18 螺母GB6170-M10flZnyc-8-480 NUT 4013000370 Y 8 19 垫圈GB97.1-10flZnyc-300HV-480 WASHER 4015000433 Y 17 20 缓冲器 ABSORBER 4190001829 Y 2 21 螺栓GB5783-M1045flZnyc-8.8-480 SCREW 4011001304 Y 8
22 下铰接销 PIN 29270010881 Y 1
23 套 BUSHING 29270010131 Y 2
24 旋转轴唇形密封圈GB9877.1-B10012512 SEALING RING 4030000260 GB9877.1-B10012512 Y 2
25 盘 FLANGE 29270010181 Y 1
26 螺栓GB16674.1-M12120flZnyc-8.8-480 SCREW 4011001316 Y 8 27 螺母GB6177.1-M12flZnyc-10-480 NUT 4013000385 Y 8 28 垫片 SHIM 29270010161 Y 1 29 垫片 SHIM 29270010151 Y 2 30 垫片 SHIM 29270010171 Y 1 31 滚动轴承GB297-33216 ROLLER BEARING 4021000244 Y 2 32 螺栓GB5782-M1690flZnyc-8.8-480 SCREW 4011001267 Y 4
33 螺栓GB5783-M1650flZnyc-8.8-480 SCREW 4011001328 Y 4 34 垫圈GB97.1-16flZnyc-300HV-480 WASHER 4015000436 Y 8 35 盘 FLANGE 29270010261 Y 1 36 垫片 SHIM 29270010241 Y 1 37 垫片 SHIM 29270010251 Y 1 38 垫片 SHIM 29270010231 Y 1 39 垫片 SHIM 29270010221 Y 1 40 套 GROMMET 29270010891 Y 1 41 盘 FLANGE 29270010141 Y 1 42 卡子胶条LGB320-U210 SEALING STRIP 4043000948 Y 2 43 板 PLATE 29270014191 Y 1 44 螺栓GB5783-M1025flZnyc-8.8-480 SCREW 4011001248 Y 14
45 油管 LUBRICATING PIPE 29270016131 Y 2
46 油管 LUBRICATING PIPE 29270014631 Y 1
47 油管 LUBRICATING PIPE 29270014611 Y 1
48 螺栓GB5782-M12140flZnyc-8.8-480 SCREW 4011001272 Y 4 49 螺栓GB5783-M1230flZnyc-8.8-480 SCREW 4011001250 Y 2
50 螺母GB6170-M12flZnyc-8-480 NUT 4013000368 Y 4
51 盖板 COVER PLATE 29270015961 Y 1
52 走线胶套 RUBBER SLEEVE 29270009101 Y 1
53 接头 NIPPLE 29250014121 Y 5
54 螺栓GB5783-M820flZnyc-8.8-480 SCREW 4011001247 Y 6 55 垫圈GB96.1-8flZnyc-300HV-480 WASHER 4015000425 Y 6 56 护板 PROTECTING PLATE 29270015971 Y 1 57 垫圈GB96.1-12flZnyc-300HV-480 WASHER 4015000427 Y 7 58 左踏脚 FOOT STEP 29270010781 Y 1 59 右踏脚 FOOT STEP 29270010821 Y 1 60 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M12*25EpZn-8.8 Y 8
61 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 8
62 板 PLATE 29270014181 Y 1
63 卡子胶条LGB320-U170 SEALING STRIP 4043001028 Y 1
