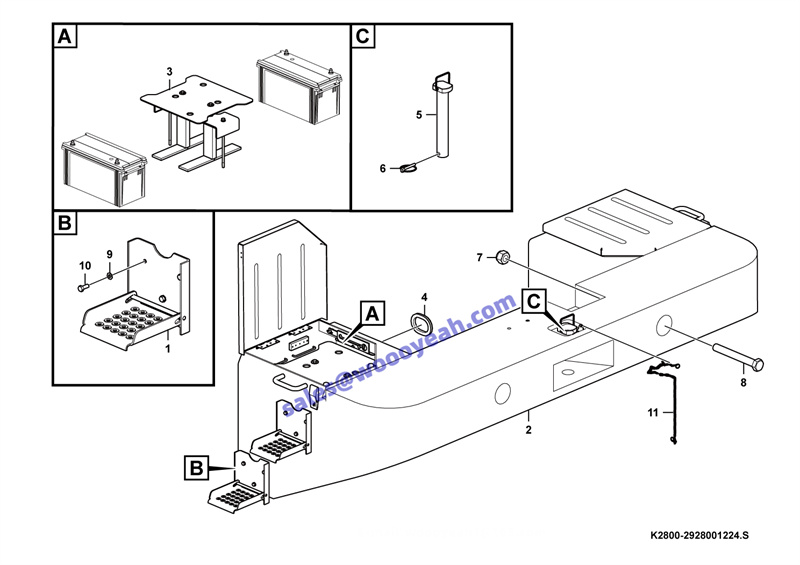

K2800-2928001224.S:配重-77 Counter weight
K2800-2928001224.S:配重-77 Counter weight
1 梯子 FOOT STEP 28290002531 Y 2
2 平衡铁 COUNTERWEIGHT 29280012252 Y 1
3 蓄电池固定总成 BATTERY RETAINER 29280012261 N 1
4 走线胶套 RUBBER SLEEVE 29340011901 Y 1
5 牵引销 CLEVIS PIN 29280009861 Y 1
6 卡环 LOCK RING 29280000031 ZL50G.11.3 Y 1
7 螺母GB889.2-M302flZnyc-8-480 NUT 4013000374 Y 4 8 螺栓GB5785-M302240flZnyc-8.8-480 SCREW 4011001333 Y 4 9 垫圈GB97.1-8flZnyc-300HV-480 WASHER 4015000430 Y 6 10 螺栓GB5783-M820flZnyc-8.8-480 SCREW 4011001247 Y 6
11 连接链 CHAIN 29280012291 Y 1
