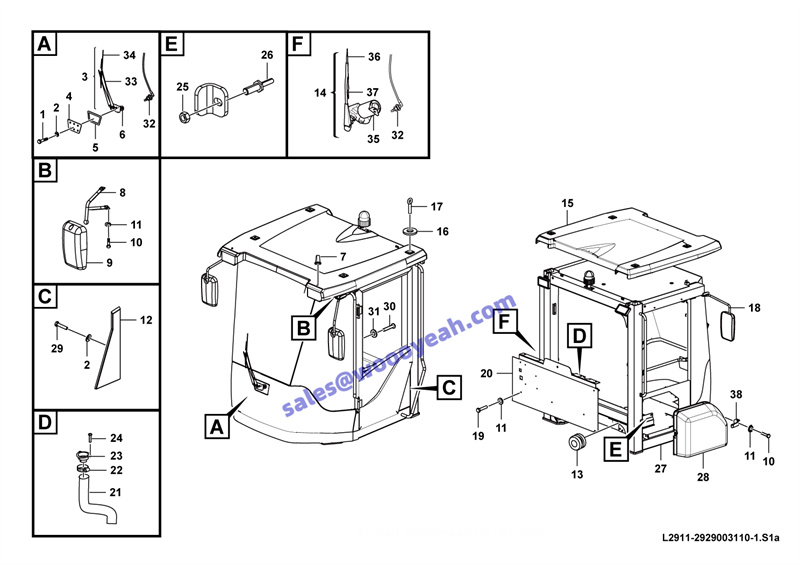

L2911-2929003110-1.S1a:驾驶室外附件-80 Cab external parts assembly

1 螺栓GB5783-M620flZnyc-8.8-480 SCREW 4011001273 Y 9 2 垫圈GB97.1-6flZnyc-300HV-480 WASHER 4015000424 Y 9 3 刮杆系统 WIPER ARM 29290016081 Y 1 4 雨刮器盖板 COVER PLATE 29290013531 Y 1 5 雨刮器密封垫圈 WASHER 29290013621 Y 1 6 前雨刮马达E WIPER MOTOR 29290018901 Y 1 7 走线胶套 RUBBER COVER 28250005602 Y 2 8 左后视镜支架 BRACKET 29290017201 Y 1 9 倒车镜 REAR VIEW MIRROR 29290013761 4.19E+12 Y 2 10 螺钉GB70.1-M820flZnyc-8.8-480 SCREW 4014000530 Y 4
11 垫圈GB97.1-8flZnyc-300HV-480 WASHER 4015000430 Y 10
12 外饰 CAB BRACKET 29290023351 Y 1
13 走线胶套 RUBBER SLEEVE 26310001872 Y 1
14 后雨刮E WINDSHIELD WIPER 29290018911 Y 1
15 顶棚总成 CAB ROOF 29290021211 Y 1
16 密封垫圈 SEALING RING 4190000956 Y 4
17 螺钉GB825-M16flZnyc-25-480 SCREW 4014000516 Y 4
18 右后视镜支架 BRACKET 29290017241 Y 1
19 螺栓GB5783-M820flZnyc-8.8-480 SCREW 4011001247 Y 6 20 后围总成 PLATE 29290021151 Y 1 21 风管 AIR DUCT 29290021611 Y 1 22 喉箍JB8870-d60 CLAMP 4017000007 JB8870-d60 Y 1 23 风口 AIR DUCT 29290032171 Y 1 24 螺钉GB818-M616flZnyc-8.8-480 SCREW 4014000524 Y 2
25 螺母GB6170-M10flZnyc-8-480 NUT 4013000370 Y 1
26 空调罩锁销 PIN 29290021221 Y 1
27 复合海绵 SPONGE 29290023031 Y 1
28 空调罩总成 COVER 29290016301 Y 1
29 螺栓GB5783-M616flZnyc-8.8-480 SCREW 4011001285 Y 3 30 螺钉GB818-M816flZnyc-4.8-480 SCREW 4014000521 Y 2
31 垫圈GB96.1-8flZnyc-300HV-480 WASHER 4015000425 Y 2
32 喷水嘴 SPRAY NOZZLE 29290021801 Y 1
33 刮杆总成 WIPER ARM 29290026391 N 1
-4190002588
34 刮片 WIPER BLADE 29290026401 Y 1
35 马达总成 WIPER MOTOR 29290018921 Y 1
36 刮片 WIPER BLADE 29290021781 Y 1
37 刮杆 WIPER ARM 29290021791 Y 1
38 支架 Bracket 29290028241 Y 1
