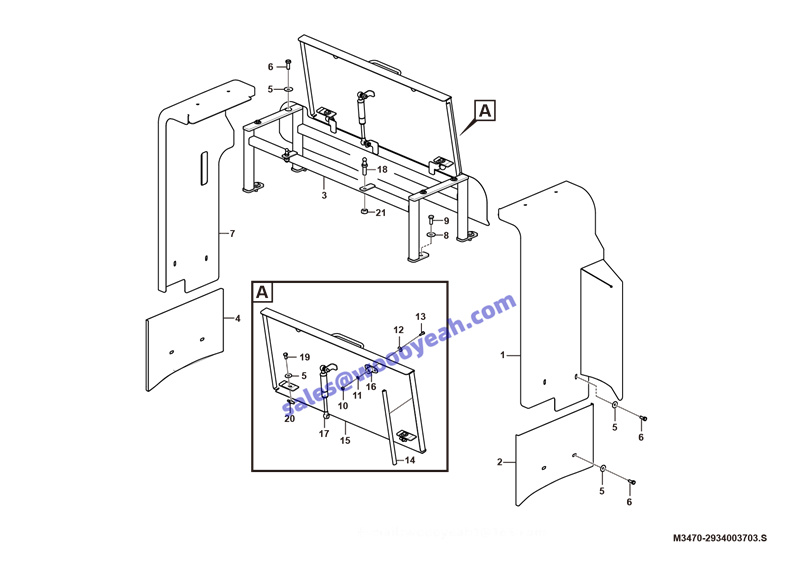

M3470-2934003703.S:液压油箱护罩总成-98 protecting cover

1 右护罩总成 PROTECTING COVER 29340036391 Y 1
2 右下护罩 PROTECTING COVER 29340037001 Y 1
3 支架 BRACKET 29340036521 Y 1
4 左下护罩 PROTECTING COVER 29340036991 Y 1
5 垫圈GB96.1-8flZnyc-300HV-480 WASHER 4015000425 Y 14
6 螺栓GB5783-M820flZnyc-8.8-480 SCREW 4011001247 Y 12 7 左护罩总成 PROTECTING COVER 29340036361 Y 1 8 垫圈GB96.1-10flZnyc-300HV-480 WASHER 4015000426 Y 4 9 螺栓GB5783-M1025flZnyc-8.8-480 SCREW 4011001248 Y 4
10 螺母GB6170-M6flZnyc-8-480 NUT 4013000372 Y 4
11 垫圈GB97.1-6flZnyc-300HV-480 WASHER 4015000424 Y 4
12 垫圈GB96.1-6flZnyc-300HV-480 WASHER 4015000437 Y 4
13 螺栓GB5783-M616flZnyc-8.8-480 SCREW 4011001285 Y 4 14 卡子胶条 SEALING STRIP 29330039041 Y 2 15 上盖总成 COVER 29340036251 Y 1 16 橡胶座 RUBBER FRAME 29340036401 Y 2 17 气弹簧JB8064.1-YQ8/18-50-200（B-B）200 SPRING 4190000342 JB8064.1-YQ8/18-50-200（B-B）200 Y 1 18 球头螺栓 BALL STUD 29340037021 Y 2 19 螺栓GB5783-M816EpZn-8.8 BOLT 4011000102 GB5783-M8*16EpZn-8.8 Y 2
20 球头总成 BALL JOINT 29340037011 Y 2
21 螺母GB6170-M10flZnyc-8-480 NUT 4013000370 Y 2
