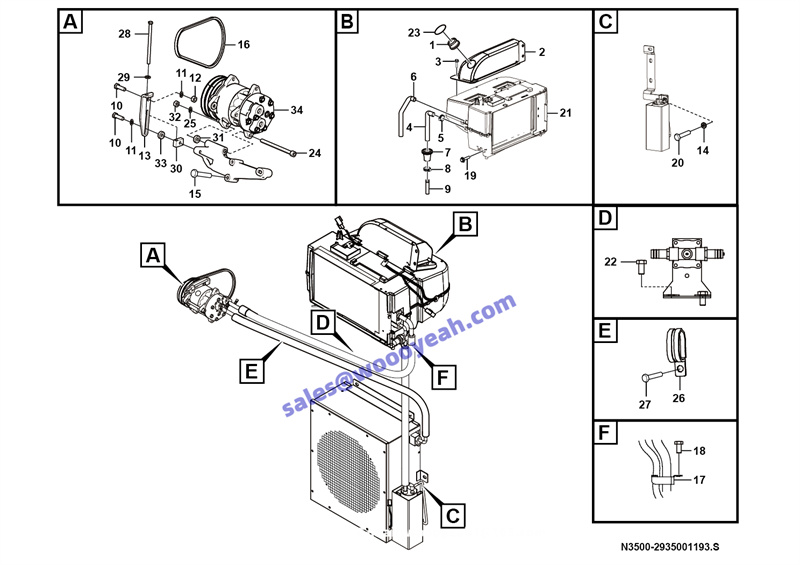

N3500-2935001193.S:空调-100 air conditioning system

1 空调出风口 AIR DUCT 29350010611 Y 1
2 空调接口风道 AIR DUCT 29350010601 Y 1
3 螺栓GB16674.1-M612flZnyc-8.8-480 SCREW 4011001343 Y 3 4 进水管 HOSE 29350010321 Y 1 5 环箍QC390-D26 CLAMP 4017000024 Y 4 6 出水管 HOSE 29350010311 Y 1 7 橡胶套 RUBBER SLEEVE 29310022301 Y 2 8 扎丝LG13-ZS3150 CABLE TIE 4190000019 LG13-ZS3150 Y 5 9 过渡管 COPPER TUBE 29350010291 Y 1 10 螺栓GB5783-M840flZnyc-10.9-480 SCREW 4011001341 Y 2
11 垫圈GB97.1-8flZnyc-300HV-480 WASHER 4015000430 Y 7
12 螺母GB889.1-M8flZnyc-8-480 NUT 4013000384 Y 1
13 支架 BRACKET 29350011041 Y 1
14 垫圈GB96.1-10flZnyc-300HV-480 WASHER 4015000426 Y 6
15 螺栓GB16674.1-M850flZnyc-10.9-480 SCREW 4011001340 Y 3 16 压缩机皮带A17-410 BELT 4110000347 Y 1 17 管卡 CLAMP 29350011401 Y 1 18 螺栓GB5783-M816flZnyc-8.8-480 SCREW 4011001246 Y 1
19 螺栓GB16674.1-M820flZnyc-8.8-480 SCREW 4011001296 Y 6 20 螺栓GB5783-M1025flZnyc-8.8-480 SCREW 4011001248 Y 4
21 L958F空调系统 AIR CONDITIONING UNIT 29350011951 Y 1
22 螺栓GB5783-M1020flZnyc-8.8-480 SCREW 4011001238 Y 2 23 喉箍JB8870-d60 CLAMP 4017000007 JB8870-d60 Y 1 24 螺钉GB70.1-M10130flZnyc-10.9-480 SCREW 4014000536 Y 1
25 垫圈GB97.1-10flZnyc-300HV-480 WASHER 4015000433 Y 2
26 管夹 CLAMP 26050000801 Y 1
27 螺栓GB16674.1-M1220flZnyc-8.8-480 SCREW 4011001337 Y 1 28 螺栓GB5783-M8130flZnyc-10.9-480 SCREW 4011001342 Y 1
29 垫圈GB849-8flZnyc-480 WASHER 4015000440 Y 1
30 固定块 BLOCK 29350011051 Y 1
31 垫片 SHIM 29350011061 Y 1
32 螺母GB889.1-M10flZnyc-8-480 NUT 4013000394 Y 1
33 垫片 SHIM 29350011121 Y 2
34 空压机 COMPRESSOR 11212853 3215082742-A N 1
-14402470
