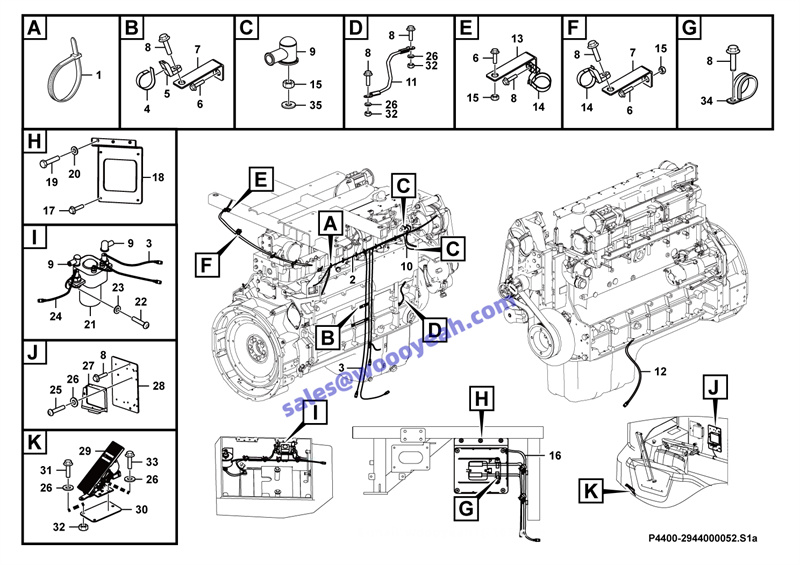

P4400-2944000052.S1a:发动机电气总成-111 Engine electric system

1 扎丝LG13-ZS4160 CABLE TIE 4190001839 Y 20 2 发动机线束 WIRING HARNESS 29440000531 Y 1 3 UL电瓶线P253500 BATTERY CABLE 29370026451 Y 1
4 扎带 STRIP CLAMP 14400341 14400341 Y 2
5 扎带座 STRIP CLAMP 14400340 14400340 Y 2
6 螺栓GB16674.1-M1020flZnyc-8.8-480 SCREW 4011001294 Y 4 7 支架 BRACKET 26370001072 Y 3 8 螺栓GB16674.1-M816flZnyc-8.8-480 SCREW 4011001297 Y 16
9 红电瓶线护套 CABLE SLEEVE 26370002431 Y 4
10 UL电瓶线P202350 BATTERY CABLE 29370026911 Y 1 11 线束 CABLE 11210840 14552493-C Y 1 12 接地线P50500 GROUND CABLE 29370023201 Y 1
13 板 PLATE 26370001081 Y 1
14 扎带 STRIP CLAMP 14400342 14400342 Y 4
15 螺母GB6170-M8flZnyc-8-480 NUT 4013000373 Y 4
16 电瓶线P15500 BATTERY CABLE 29370015791 Y 1 17 螺栓GB16674.1-M835flZnyc-8.8-480 SCREW 4011001277 Y 4
18 固定板 BRACKET 29440000541 Y 1
19 螺栓GB5783-M1230flZnyc-8.8-480 SCREW 4011001250 Y 3 20 垫圈GB97.1-12flZnyc-300HV-480 WASHER 4015000428 Y 3 21 接触器JCC200/1C24·48A RELAY 4130001988 Y 1 22 螺钉GB818-M510flZnyc-4.8-480 SCREW 4014000515 Y 2
23 垫圈GB97.1-5flZnyc-300HV-480 WASHER 4015000431 Y 2
24 150A预热线束 WIRING HARNESS 29370026421 Y 1
25 螺钉GB818-M612flZnyc-4.8-480 SCREW 4014000512 Y 4 26 垫圈GB97.1-6flZnyc-300HV-480 WASHER 4015000424 Y 12 27 HMIM11383485 CONNECTOR 4130002003 Y 1 28 固定板 PLATE 29370024701 Y 1 29 电子油门踏板WL402067 ACCELERATOR PEDAL 4130002013 Y 1 30 过渡板 PLATE 29440000161 Y 1 31 螺栓GB16674.1-M616flZnyc-8.8-480 SCREW 4011001275 Y 3
32 螺母GB6170-M6flZnyc-8-480 NUT 4013000372 Y 5
33 螺栓GB16674.1-M6*20flZnyc-8.8-480 SCREW 4011001276 Y 4
34 管夹 CLAMP 11214766 13949997 N 2
-11210056
35 垫圈GB97.1-8flZnyc-300HV-480 WASHER 4015000430 Y 2

P4310-4130001685:工作灯（3713EE）-109 Work lamp(3713EE)

1 工作灯148*86-H3-24V LAMP 4130001685 Y 1
2 垫圈GB97.1-10EpZn-300HV WASHER 4015000162 Y 1
3 垫圈GB93-10-65Mn SPRING WASHER 4015000025 GB93-10-65Mn Y 1
4 螺母GB6170-M10EpZn-10 NUT 4013000005 GB6170-M10EpZn-10 Y 1
5 灯泡PHILIPS 13336 H3 BULB 4130000620 Y 1

P4320-4130001854:中央电器控制盒CECB-9（410707）-110 Fuse and relay unit(410707)

1 控制盒壳体CECB-3 COVER 4130001322 N 1
2 闪光灯继电器4DB003675-01 FLASHER RELAY 4130002075 Y 1
3 继电器 V23234-A0004-X053 RELAY 4130001844 Y 13
4 保险片ATO 5A FUSE 4130001837 Y 4
5 大盲堵RTD-FSS800 plug 4130001325 N 4
6 保险片ATO 7.5A FUSE 4130001838 Y 4
7 保险片ATO 10A FUSE 4130001839 Y 30
8 AMP护套总成1544334-1 RUBBER SLEEVE 4130001715 Y 1
9 AMP护套总成1-967624-1 RUBBER SLEEVE 4130001331 Y 3
10 保险夹 CLAMP 4130001330 N 1
11 保险片ATO 30A FUSE 4130001859 Y 1
12 保险片ATO 20A FUSE 4130001840 Y 1
13 电源继电器V23134-J0056-X408 RELAY 4130001843 Y 3
14 控制盒底盖CECB-3 COVER 4130001335 N 1
15 PCB板CECB-8 Plate 4130001712 N 1
