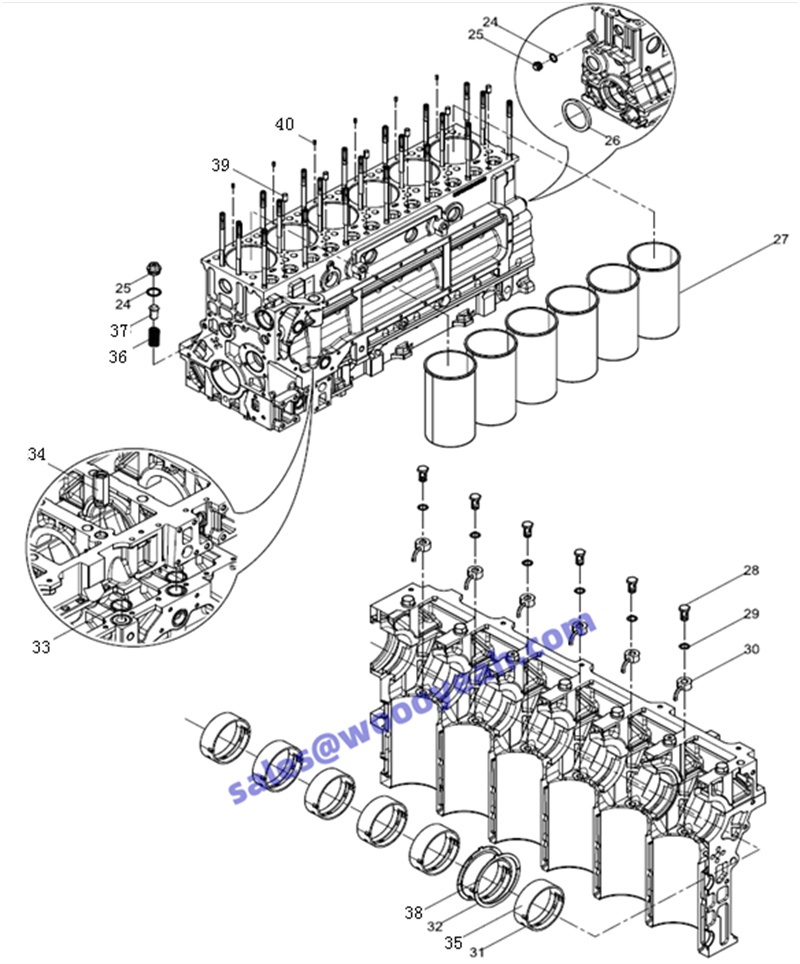

A5-4110001592:机体结合组 G003501001-1 Crankcase

1 气缸体 612600013704 Cylinder block 4110001592004 612600013704 N 1
2 碗形塞 90003982121 PLUG 4110001592005 90003982121 Y 4
3 碗形塞90003989210 PLUG 2010900111027 Y 10
4 曲轴箱 612600013717 Crankcase 4110001592006 612600013717 N 1
5 自锁垫圈188250083 WASHER 4110000556253 Y 17
6 内六角圆柱头螺钉90003862428 SCREW 4110000924051 Y 17
7 碗形塞90003989204 PLUG 4110001015067 Y 1
8 碗形塞90003989480 PLUG 4110001015070 Y 1
9 碗形塞90003989215 PLUG 4110000924056 Y 4
10 气缸盖螺栓 612600010893 SCREW 4110001592007 612600010893 Y 1
11 气缸盖螺栓(加密封胶)61500010185S SCREW 4110001048006 61500010185S Y 14
-4110000556158
12 气缸盖螺栓61500010185 SCREW 4110000556158 Y 6
13 碗形塞 90003989289 PLUG 4110001592008 90003989289 Y 4
14 内螺纹圆柱销 612600010051 PIN 4110001592009 612600010051 Y 3
15 螺塞 612600011927 PLUG 4110001592010 612600011927 Y 1
16 密封垫圈612600050042 WASHER 4110000846102 612600050042 Y 1
17 铆钉612600013437 RIVET 4110000924058 Y 1
18 碗形塞90003989288 PLUG 4110000924057 Y 1
19 凸轮轴衬套61560010029 CAMSHAFT BUSHING 4110000924036 61560010029 Y 6
20 凸轮轴衬套 612600010990 BUSHING 4110001592011 612600010990 Y 1
21 主轴承螺栓614010217 SCREW 4110000556251 Y 4
22 主轴承螺栓614010114 SCREW 4110000556250 Y 10
23 六角头螺栓 90011350085 SCREW 4110001592012 90011350085 Y 10
24 复合垫圈612600010735 WASHER 4110000556052 Y 2
25 六角螺塞90003962051 PLUG 4110001015115 Y 2
26 后油封61500010100 SEALING RING 4110000556060 Y 1
27 气缸套 612630010055 CYLINDER LINER 4110001592013 612630010055 Y 6
28 空心螺栓90003962621 EYE BOLT 4110000924048 Y 6
29 密封垫圈90003098015 GASKET 4110000924047 Y 6
30 喷嘴组件 612600010750 NOZZLE 4110001592014 612600010750 Y 6
31 主轴承瓦合件1000317874 BEARING SHELL 4110001592015 Y 7
32 上止推片 612630010629 THRUST WASHER 4110001592016 612630010629 Y 2
-4110001592178
33 密封圈81400010032 SEALING RING 4110000556139 Y 2
34 主油道限压阀总成AZ1500070097 PRESSURE LIMITING VALVE 4110000556249 Y 1
35 主轴承下瓦 61800010132 BEARING SHELL 4110001592017 61800010132 Y 7
-4110001592015
36 安全阀弹簧614070068 SPRING 4110000556011 Y 1
37 安全阀614070069 VALVE 4110000556010 Y 1
38 下止推片 612630010630 THRUST WASHER 4110001592018 612630010630 Y 2
-4110001592178
39 圆柱销90003901604 PIN 4110000591039 90003901604 Y 6
40 弹性圆柱销90003909626 SPRING PIN 4110000924053 Y 6
