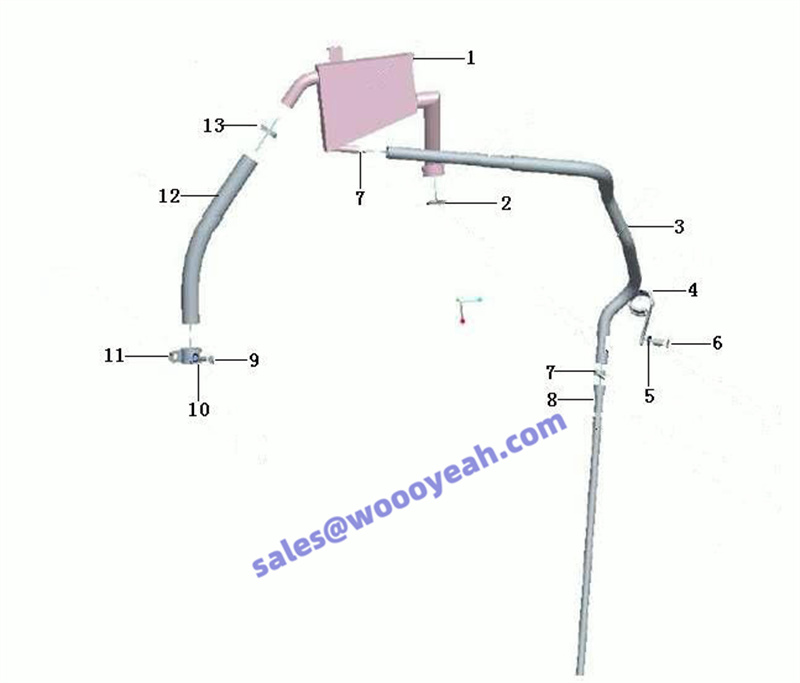

A8-4110001592:油气分离器总成 G003501004-4 Separator

1 油气分离器总成 612600013660 SEPARATOR 4110001592022 612600013660 Y 1
2 密封圈 609F070041 SEALING RING 4110001592023 609F070041 Y 1
3 油路连接胶管 612600012938 HOSE 4110001592024 612600012938 Y 1
4 单管夹子总成612600111639 CLAMP 4110000556026 Y 2
5 波形弹性垫圈90003932023 SPRING WASHER 4110000591033 90003932023 Y 1
6 六角头螺栓 90003802411 SCREW 4110001592025 90003802411 Y 1
7 软管卡箍90003989300 CLAMP 4110000924082 Y 2
8 回油管接头 612600013245 NIPPLE 4110001592026 612600013245 Y 1
9 六角头螺栓全螺纹 612600110961 SCREW 4110001592027 612600110961 N 1
-4110001654069
10 弹簧垫圈90003931142 SPRING WASHER 4110000924114 Y 1
11 单管夹子总成 612600013280 CLAMP 4110001592028 612600013280 Y 1
12 油路连接胶管 612600011974 HOSE 4110001592029 612600011974 Y 1
13 软管卡箍 90003989301 CLAMP 4110001592030 90003989301 Y 1
