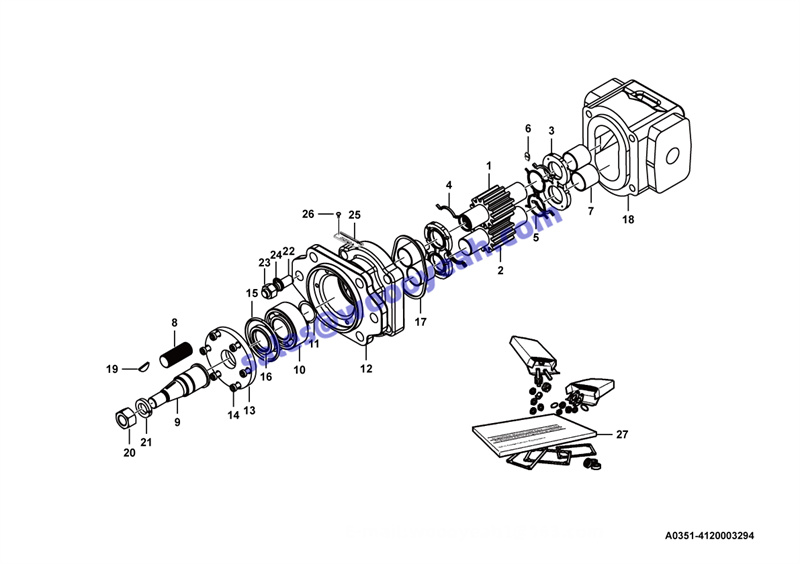

A0351-4120003294:齿轮马达(120101)-6 hydraulic motor(120101)

1 主动齿轮CN103000013 Drive shaft 4120003294001 N 1
2 被动齿轮CN103000014 Gear 4120003294002 N 1
3 侧板CL8782-058-00C Plate 4120003294003 Y 2
4 密封件CL8782-014-00K Sealing ring 4120003294021 N 4
5 支撑件CL8782-015-00F Gear 4120003294006 N 2
6 密封件CL8782-013-00P Sealing ring 4120003294004 N 2
7 衬套CL8682-018-00C Bushing 4120003294007 Y 4
8 连接轴3241133001 Shaft 4120003294008 Y 1
9 前轴CN103000003 Front axle 4120003294009 Y 1
10 轴承3910381127 Bearing 4120003294010 N 1
11 挡圈GB894.2-30-65Mn Retaining ring 4015000220 GB894.2-30 N 2
12 前盖CN103000001 Cover 4120003294011 N 1
13 端盖3919997076C Cover 4120003294012 N 1
14 螺钉GB70.1-M612-8.8 SCREW 4014000322 Y 6 15 O型圈020143N0674 O-ring 4120003294013 N 1 16 油封AP1665E0 Sealing ring 4120003294014 Y 1 17 O型圈CL9312-641-004 O-ring 4120003294015 N 1 18 泵体CN103000002-37 Pump body 4120003294016 N 1 19 键GB1099.1-57.519 Woodruff key 4022000039 N 1 20 螺母GB6171-M161.5EpZn-8 NUT 4013000096 GB6171-M161.5EpZn-8 Y 1 21 垫片GB7425-16 Spring washer 4120003294020 N 1 22 螺柱GB900-AM1238-12.9 Stud 4012000096 N 4
23 螺母GB6170-M12EpZn-10 NUT 4013000150 GB6170-M12EpZn-10 Y 4
24 垫圈CL9222-575-009 Spring washer 4120003294017 Y 4
25 标牌DF50-133 Name plate 4120007903003 N 1
26 铆钉3911432004 Rivet 4120003294019 N 2
27 密封件包 CN103036001 Sealing kit 4120003294022 Y 1
