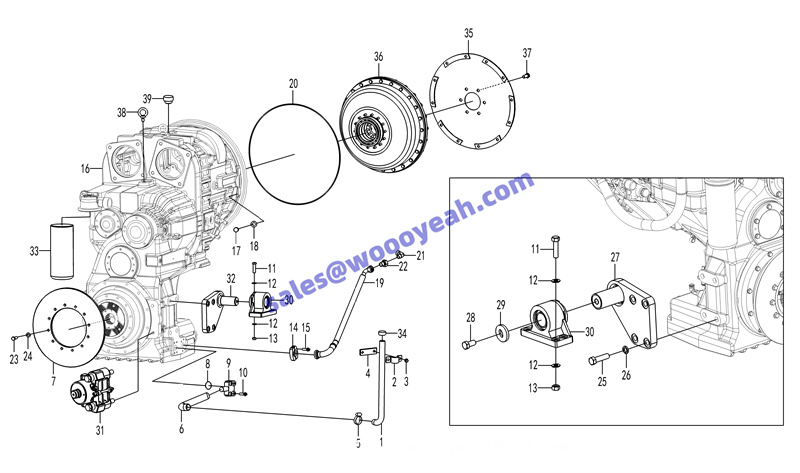

C1-2905001770:变速箱总成-7 transmission assembly

1 加油管 OIL PIPE 29050017711 Y 1
2 管夹Ф34 CLIP 29050017741 Y 1
3 螺栓GB16674-M1020EpZn-8.8 BOLT 4011000447 GB16674-M1020EpZn-8.8 Y 2
4 垫板 PLATE 29050017751 Y 1
5 喉箍JB8870-d50 CLAMP 4017000009 JB8870-d50 Y 2
6 胶管JB8406-B32420 HOSE ASSEMBLY 4120000054 JB8406-B32420 Y 1
7 制动盘 BRAKE DISC 29050018761 Y 1
8 O形圈GB3452.1-32.53.55G O-RING 4030000026 GB3452.1-32.53.55G Y 2
9 法兰接头 NIPPLE 29050018181 Y 1
10 螺栓GB16674-M1050EpZn-8.8 BOLT 4011000309 GB16674-M1050EpZn-8.8 Y 4
11 螺栓GB5785-M181.575EpZn-10.9 SCREW 4011000951 Y 8
12 垫圈GB97.1-18EpZn-300HV WASHER 4015000182 GB97.1-18EpZn-300HV Y 16
13 螺母GB889.2-M181.5EpZn-10 NUT 4013000252 Y 8 14 分体法兰LGB117-310491 FLANGE HALF 4041000026 Y 2 15 螺栓GB16674-M1030EpZn-8.8 BOLT 4011000475 GB16674-M1030EpZn-8.8 Y 4 16 变速箱22582HT220 TRANSMISSION 4110001061 Y 1 17 螺栓M10 SCREW 29050018191 Y 12 18 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn Y 12 19 变矩器回油管 OIL PIPE 29050017771 Y 1 20 0型圈 O-RING 29050017781 Y 1 21 直角接头 NIPPLE 29050017791 Y 1 22 组合接头LGB143-13625 ELBOW NIPPLE 4041001485 Y 1 23 螺栓GB5783-M1235EpZn-8.8 BOLT 4011000090 GB5783-M1235EpZn-8.8 Y 12 24 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 12 25 螺栓GB5783-M2075EpZn-10.9 SCREW 4011000950 Y 8
26 垫圈GB93-20-65Mn SPRING WASHER 4015000030 GB93-20-65Mn Y 8
27 变速箱右支架 BRACKET 29050017831 Y 1
28 螺栓GB5783-M2040EpZn-10.9 SCREW 4011000835 Y 2 29 垫圈 WASHER 29050017851 Y 2 30 减震器总成 ABSORBER 4110000943 Y 2 31 驻车制动器SA7000 DISC BRAKE 4190001657 Y 1 32 变速箱左支架 BRACKET 29050017801 Y 1 33 滤清器P165659 OIL FILTER 4110001179 Y 1 34 加油盖 COVER 29050017721 Y 1 35 弹性板HT200 LEAF SPRING 4110001152 Y 1 36 变矩器W340-L120G TORQUE CONVERTER 4110001145 N 1 37 螺栓GB5783-M1025EpZn-10.9 BOLT 4011000993 Y 1
38 吊环螺钉GB825-M20EpZn-20 SCREW 4014000030 GB825-M20EpZn-20 Y 1
39 空气滤清器C-NPTF1/2 AIR CLEANER 4110001062 Y 1
