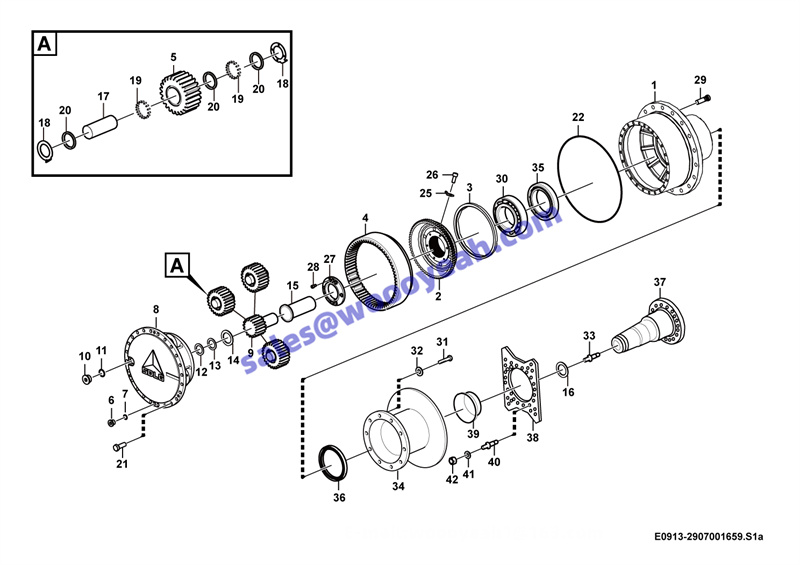

E0913-2907001659.S1a:轮边减速器-24 Hub reduction

1 轮毂 FRONT WHEEL HUB 29070013341 Y 1
2 齿圈支架 Gear ring holder 29070013352 N 1
3 挡圈 Retaining ring 29070011212 Y 1
4 内齿圈 GEAR RING 29070013361 Y 1
5 行星齿轮 PLANET GEAR 29070013371 Y 3
6 磁性螺塞 PLUG 29070011751 Y 1
7 O形圈GB3452.1-13.21.80G O-RING 4030000076 GB3452.1-13.21.80G Y 1
8 行星轮架 Planet carrier 29070013382 Y 1
9 太阳轮 SUN GEAR 29070013391 Y 1
10 磁性螺塞 PLUG 29070011661 Y 1
11 O形圈LGB168-12931 O-RING 4041000765 Y 1
12 调整垫片 SHIM 29070011701 Y 1
13 调整垫片 SHIM 29070011711 Y 1
14 太阳轮垫片 SHIM 29070012441 Y 1
15 连接套 ENGAGING SLEEVE 29070013401 Y 1
16 垫片 SHIM 29070013411 Y 1
17 行星齿轮轴 PLANET GEAR SHAFT 29070013421 Y 3
18 挡环 RETAINING RING 29070011291 Y 6
19 滚柱 ROLLER 29070013431 Y 102
20 挡环 RETAINING RING 29070011311 Y 9
21 螺栓GB5786-M141.540EpZn-10.9 BOLT 4011000214 GB5786-M141.540EpZn-10.9 Y 24
22 O形圈 O-RING 29070011141 Y 1
23 挡板 BAFFLE 29070011321 Y 3
24 螺栓GB5783-M1020EpZn-8.8 BOLT 4011000081 GB5783-M1020EpZn-8.8 Y 6
25 锁紧片 Lock washer 29070012932 Y 1
26 螺钉GB70.1-M816EpZn-8.8 SCREW 4014000033 GB70.1-M816EpZn-8.8 Y 1
27 圆螺母 ROUND NUT 29070013441 Y 1
28 螺钉GB70-M10120EpZn-8.8 SCREW 4014000016 GB70-M10120EpZn-8.8 Y 2
29 轮辋螺栓 SCREW 29070011171 Y 18
30 滚动轴承GB297-32032 ROLLER BEARING 4021000237 Y 1
31 螺栓GB5786-M161.550EpZn-8.8 BOLT 4011000244 GB5786-M161.550EpZn-8.8 Y 18
32 垫圈 WASHER 29070009511 Y 18
33 螺柱 STUD 29070011341 Y 1
34 制动盘 BRAKE DISC 29070015721 Y 1
35 轴承 ROLLER BEARING 29070013471 Y 1
36 密封圈GB9877-FB18523515 SEALING RING 4030000787 Y 1
37 轮边支承轴 SUPPORT SHAFT 29070013481 Y 1
38 制动钳支架 BRACKET 29070015731 Y 1
39 防尘罩 DUST COVER 29070013501 Y 1
40 双头螺柱 STUD 29070013511 Y 20
41 垫圈 WASHER 29070011121 Y 20
42 螺母GB6176-M20*1.5-10 NUT 4013000204 Y 20
