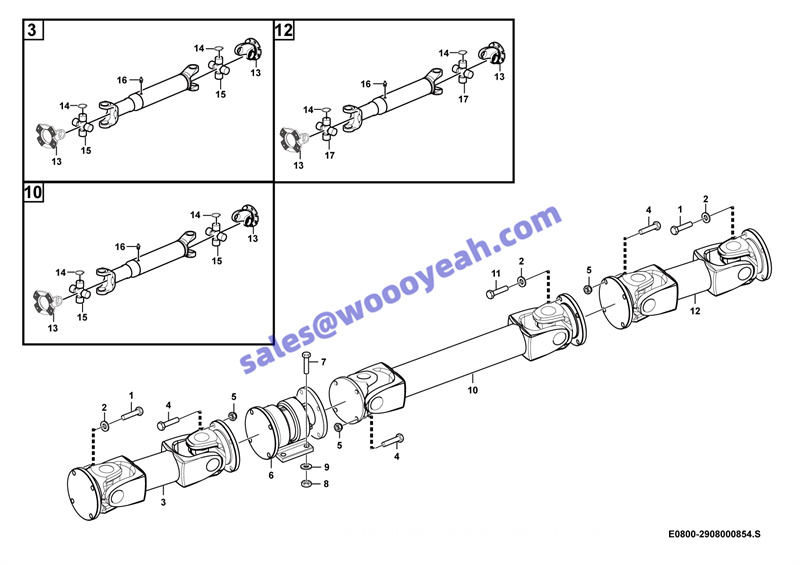

E0800-2908000854.S:后传动轴-27 Propeller shaft

1 螺栓GB5786-M141.540EpZn-10.9 BOLT 4011000214 GB5786-M141.540EpZn-10.9 Y 8
2 垫圈GB97.1-14EpZn-300HV WASHER 4015000177 GB97.1-14EpZn-300HV Y 12
3 传动轴CDZC-652 PROPELLER SHAFT 4110002344 Y 1
4 螺栓GB5785-M141.555EpZn-10.9 BOLT 4011000942 Y 12
5 螺母GB889.2-M141.5EpZn-10 LOCK NUT 4013000148 GB889.2-M141.5EpZn-10 Y 12
6 中间支撑 PROPELLER SHAFT 4110002185 Y 1
7 螺栓GB5786-M161.555EpZn-8.8 BOLT 4011000698 Y 4
8 螺母GB889.2-M161.5EpZn-8 LOCK NUT 4013000129 GB889.2-M161.5EpZn-8 Y 4
9 垫圈GB97.1-16EpZn-300HV WASHER 4015000181 GB97.1-16EpZn-300HV Y 4
10 中间传动轴 PROPELLER SHAFT 4110000939 Y 1
11 螺栓GB5782-M14*50EpZn-10.9 SCREW 4011000988 Y 4
12 后传动轴 PROPELLER SHAFT 4110002183 Y 1
13 突缘叉1491.707-2201062-J LINK YOKE 4110002066002 Y 6
14 卡簧1491.707-2201063 LOCK RING 4110002515002 Y 6
15 十字轴总成0125-52133-T Spider 4110002923001 Y 4
16 油杯M6 JB/T7940.1-1995 GREASE CUP 4110002086003 N 3
-4030000535
17 万向节十字轴0125-52133 SPIDER 4110002097001 N 2
-4110002923001
