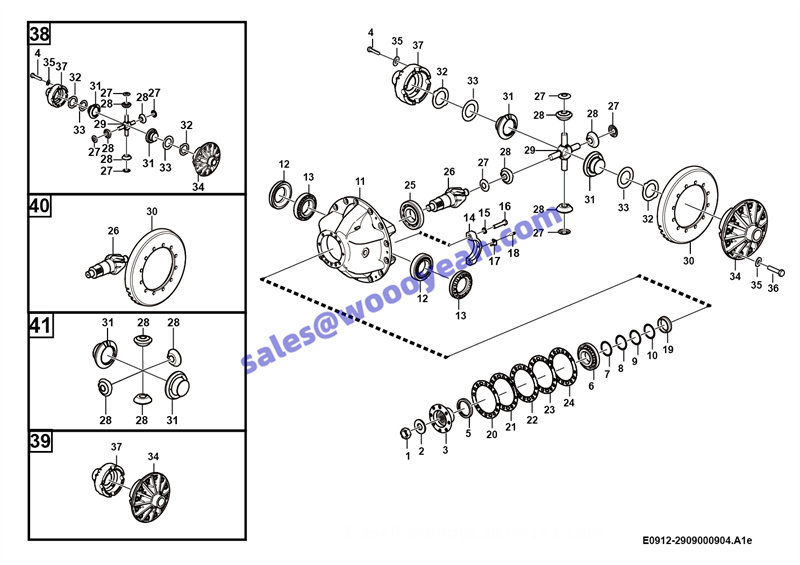

E0912-2909000904.A1E:后主传动总成-35 Rear final drive assembly

1 螺母 HEXAGON NUT 29070011651 Y 1
1 螺母 HEXAGON NUT 29070011651 Y 1
2 垫圈 WASHER 29070011671 Y 1
2 垫圈 WASHER 29070011671 Y 1
3 输入法兰 CONNECTION FLANGE 29090009081 Y 1
3 输入法兰 CONNECTION FLANGE 29090009081 Y 1
4 螺栓GB5782-M1695-10.9 SCREW 4011000801 Y 12 4 螺栓GB5782-M1695-10.9 SCREW 4011000801 Y 12
5 密封圈 GB9877.1-FB8514012F SEALING RING 4030000592 Y 1
5 密封圈 GB9877.1-FB8514012F SEALING RING 4030000592 Y 1
6 滚动轴承GB297-31312 ROLLER BEARING 4021000139 Y 1
6 滚动轴承GB297-31312 ROLLER BEARING 4021000139 Y 1
7 调整垫片 SHIM 29070008901 A503.1.1-4 Y 3
7 调整垫片 SHIM 29070008901 A503.1.1-4 Y 3
8 调整垫片 SHIM 29070008911 Y 3
8 调整垫片 SHIM 29070008911 Y 3
9 调整垫片 SHIM 29070008921 Y 2
9 调整垫片 SHIM 29070008921 Y 2
10 调整垫片 SHIM 29070008931 Y 2
10 调整垫片 SHIM 29070008931 Y 2
11 隔套 SPACER SLEEVE 29070012131 Y 1
11 隔套 SPACER SLEEVE 29070012131 Y 1
12 托架 CENTER HOUSING 29090008401 N 1
12 托架 CENTER HOUSING 29090008401 N 1
13 滚动轴承GB297-33117 ROLLER BEARING 4021000141 Y 2
13 滚动轴承GB297-33117 ROLLER BEARING 4021000141 Y 2
14 调整螺母 NUT 29070011601 Y 2
14 调整螺母 NUT 29070011601 Y 2
15 轴承座 BEARING SEAT 29070011621 N 2
15 轴承座 BEARING SEAT 29070011621 N 2
16 垫圈 WASHER 29070011121 Y 4
16 垫圈 WASHER 29070011121 Y 4
17 螺栓GB5782-M20110EpZn-10.9 BOLT 4011000217 GB5782-M20110EpZn-10.9 Y 4
17 螺栓GB5782-M20110EpZn-10.9 BOLT 4011000217 GB5782-M20110EpZn-10.9 Y 4
18 止推垫片 THRUST WASHER 29070011581 Y 2
18 止推垫片 THRUST WASHER 29070011581 Y 2
19 螺栓GB5786-M10120EpZn-8.8 BOLT 4011000597 GB5786-M10120-Ep.Zn-8.8 Y 4
19 螺栓GB5786-M10120EpZn-8.8 BOLT 4011000597 GB5786-M10120-Ep.Zn-8.8 Y 4
20 调整垫片 SHIM 29070011441 Y 1
20 调整垫片 SHIM 29070011441 Y 1
21 调整垫片 SHIM 29070011451 Y 1
21 调整垫片 SHIM 29070011451 Y 1
22 调整垫片 SHIM 29070011461 Y 1
22 调整垫片 SHIM 29070011461 Y 1
23 调整垫片 SHIM 29070011471 Y 1
23 调整垫片 SHIM 29070011471 Y 1
24 调整垫片 SHIM 29070011481 Y 1
24 调整垫片 SHIM 29070011481 Y 1
25 滚动轴承GB297-31315 ROLLER BEARING 4021000140 Y 1
25 滚动轴承GB297-31315 ROLLER BEARING 4021000140 Y 1
26 主动螺旋伞齿轮 Crown wheel 29090008252 N 1
26 主动螺旋伞齿轮 Crown wheel 29090008252 N 1
27 锥齿轮垫片 THRUST WASHER 29070011571 Y 4
27 锥齿轮垫片 THRUST WASHER 29070011571 Y 4
28 锥齿轮 DIFFERENTIAL PINION 29070011551 Y 4
28 锥齿轮 DIFFERENTIAL PINION 29070011551 Y 4
29 一字轴 SHAFT 29070011561 Y 2
29 一字轴 SHAFT 29070011561 Y 2
30 从动螺旋伞齿轮 CROWN WHEEL 29090008261 N 1
30 从动螺旋伞齿轮 CROWN WHEEL 29090008261 N 1
31 半轴齿轮 DIFFERENTIAL SIDE GEAR 29070011541 Y 2
31 半轴齿轮 DIFFERENTIAL SIDE GEAR 29070011541 Y 2
32 垫片 SHIM 29070011521 Y 2
32 垫片 SHIM 29070011521 Y 2
33 垫片 SHIM 29070011531 Y 2
33 垫片 SHIM 29070011531 Y 2
34 差速器右壳 DIFFERENTIAL HOUSING 29070011511 N 1
34 差速器右壳 DIFFERENTIAL HOUSING 29070011511 N 1
35 垫圈 WASHER 29070009511 Y 32
35 垫圈 WASHER 29070009511 Y 32
36 螺栓GB5786-M161.550-10.9 SCREW 4011000731 Y 20
36 螺栓GB5786-M161.550-10.9 SCREW 4011000731 Y 20
37 差速器左壳 DIFFERENTIAL HOUSING 29070011631 N 1
37 差速器左壳 DIFFERENTIAL HOUSING 29070011631 N 1
38 差速器总成 DIFFERENTIAL SPIDER 29070019591 Y 1
38 差速器总成 DIFFERENTIAL SPIDER 29070019591 Y 1
39 差速器左右壳 HOUSING 21909002371 Y 1
39 差速器左右壳 HOUSING 21909002371 Y 1
40 后主从动螺旋伞齿轮 CROWN WHEEL 21909002391 Y 1
40 后主从动螺旋伞齿轮 CROWN WHEEL 21909002391 Y 1
41 锥齿半齿总成 GEAR KIT 21909006461 Y 1
41 锥齿半齿总成 GEAR KIT 21909006461 Y 1
