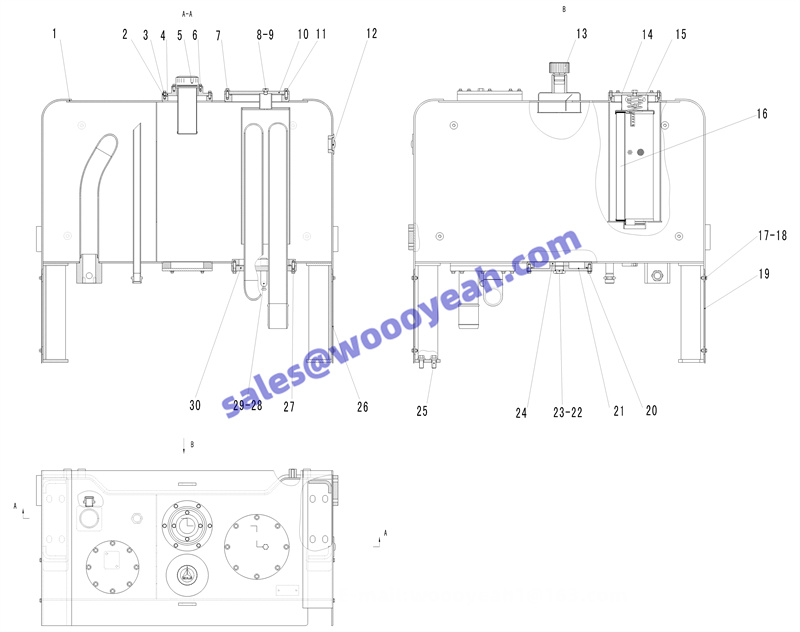

F5-2910001340:液压油箱总成-36 hydraulic fluid tank system

1 液压油箱体 HYDRAULIC FLUID TANK 29100013451 N 1
2 法兰座 FLANGE 29100008361 Y 1
3 螺栓GB16674-M820EpZn-8.8 BOLT 4011000458 GB16674-M820EpZn-8.8 Y 18
4 O形圈GB3452.1-1603.55G O-RING 4030000452 Y 1 5 加油滤芯SFM-323M FILTER INSERT 4120000452 SFM-323M Y 1 6 螺栓GB16674-M816EpZn-8.8 BOLT 4011000461 GB16674-M816EpZn-8.8 Y 4 7 螺栓GB16674-M1025EpZn-8.8 BOLT 4011000474 GB16674-M1025EpZn-8.8 Y 14 -4011001299 8 螺塞LGB135-01422 PLUG 4041000774 Y 2 9 O形圈LGB168-11124 O-RING 4041000767 Y 2 10 吸油上部法兰 FLANGE 29100013491 Y 1 11 O形圈GB3452.1-2065.30G O-RING 4030000177 GB3452.1-2065.30G Y 3 12 圆形油标YB-M421.5 LEVEL GAUGE 4110000807 Y 1
13 法兰盖 FLANGE 29100009991 Y 1
14 换气过滤器L1.0807-31 BREATHER CAP 4120001088 Y 1
15 O形圈GB3452.1-65.03.55G O-RING 4030000233 GB3452.1-653.55G Y 1
16 回油法兰 FLANGE 29100013521 Y 1
17 弹簧 SPRING 29100000051 ZL50F3.6.13-4 N 1
18 回油滤芯 FILTER INSERT 29100013571 Y 1
19 螺栓GB5783-M816EpZn-8.8 BOLT 4011000102 GB5783-M816EpZn-8.8 Y 6
20 垫圈GB96.1-8EpZn-300HV WASHER 4015000256 GB96.1-8EpZn-300HV Y 6
21 右侧维修板 PLATE 29100013471 N 1
22 O形圈GB3452.1-2125.30G O-RING 4030000234 GB3452.1-2125.3G Y 1
23 法兰盖 FLANGE 29100001041 Y 1
24 螺塞LGB135-03341 PLUG 4041000192 Y 1
25 O形圈LGB168-12931 O-RING 4041000765 Y 1
26 环形磁铁LG03-CT763215 MAGNET 4190000008 LG03-CT763215 Y 1
27 螺栓GB16674-M1635EpZn-8.8 BOLT 4011000449 GB16674-M1635EpZn-8.8 Y 8
28 左侧维修板 PLATE 29100013841 Y 1
29 螺栓GB16674-M1035EpZn-8.8 BOLT 4011000164 GB16674-M1035EpZn-8.8 Y 8
30 球阀MBS216-1/2 VALVE 4120000099 MBS216-1/2 Y 1
31 放油接头 NIPPLE 29100009061 Y 1
32 吸油下部法兰 FLANGE PIPE 29100013611 Y 1
