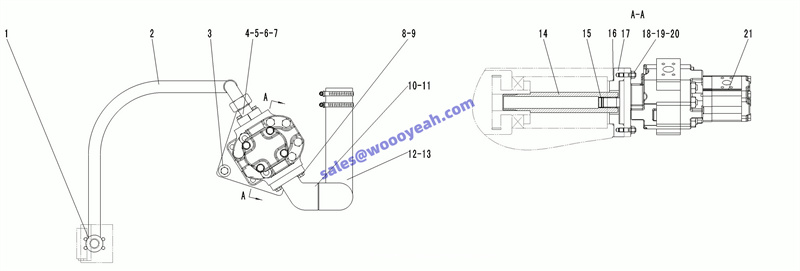

F2-2911000910:工作泵总成-37 Working hydraulic pump assembly

1 法兰总成M1M1HK-16 FLANGE HALF 4120000456 M1M1HK-16 Y 1
2 胶管F7311C15251616-2000-PG2000 HOSE ASSEMBLY 4120002988 Y 1
3 螺钉GB70.1-M1230EpZn-8.8 SCREW 4014000055 GB70.1-M1230EpZn-8.8 Y 4
4 O形圈OR37.69X3.53X O-RING 4120002990 Y 1
5 法兰接头GFS35/25SCFX NIPPLE 4120002989 Y 1
6 分体法兰LGB117-312550 FLANGE HALF 4041000056 Y 1
7 螺栓GB16674-M1030EpZn-8.8 BOLT 4011000475 GB16674-M1030EpZn-8.8 Y 4
8 螺栓GB5783-M1235EpZn-8.8 BOLT 4011000090 GB5783-M1235EpZn-8.8 Y 4
9 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn Y 4
10 吸油钢管 PIPE 29110009121 Y 1
11 O形圈GB3452.1-56.03.55G O-RING 4030000133 GB3452.1-563.55G Y 1
12 吸油胶管 HOSE 29110009151 Y 1
13 喉箍JB8870-d100 CLAMP 4017000006 JB8870-d100 Y 4
14 驱动轴 SHAFT 29110009161 Y 1
15 挡圈GB893.1-28-65Mn RETAINING RING 4015000324 Y 1
16 O形圈GB3452.1-1283.55G O-RING 4030000633 Y 2 17 法兰 FLANGE 29110009441 Y 1 18 螺柱GB898-M1235EpZn-8.8 STUD 4012000003 GB898-M12*35EpZn-8.8 Y 4
19 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 4
20 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 4
21 双联泵118/33 GEAR PUMP 4120002732 Y 1
