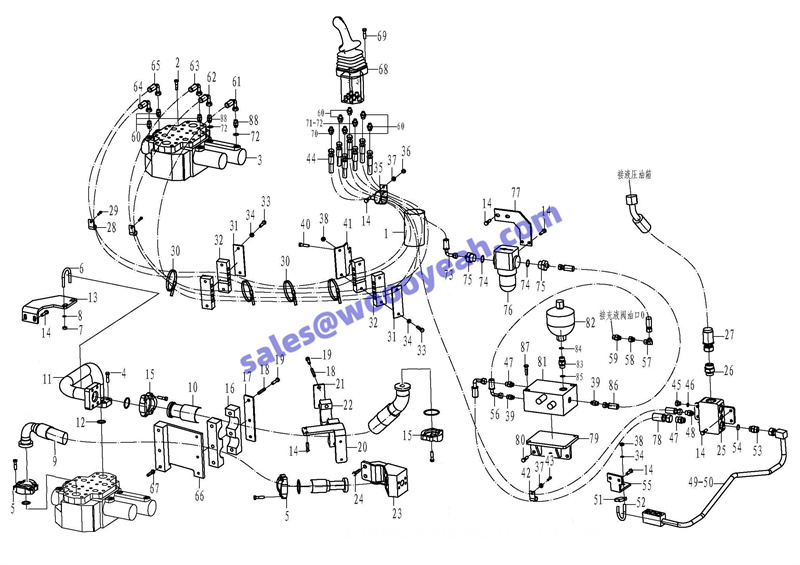

F1-2912001798:液压操纵总成-38 hydraulic control system

1 自扎帆布套 TARPAULIN COVER 26310002061 Y 2
2 螺钉GB70.1-M1290EpZn-8.8 SCREW 4014000284 Y 3 3 多路阀M1-32-02 CONTROL VALVE 4120002745 Y 1 4 螺钉GB70.1-M1640EpZn-8.8 SCREW 4014000084 GB70.1-M1640EpZn-8.8 Y 4 5 法兰总成M2M2HK-24 FLANGE HALF 4120001212 Y 2 6 U形螺栓JB/ZQ4321-51Zn-Q235A U-BOLT 4011000737 Y 1 7 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 2 8 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 2 9 胶管F7316A6N242424-2030 HOSE ASSEMBLY 4120002961 Y 1 10 胶管F4811517323232-3020 HOSE ASSEMBLY 4120002983 Y 1 11 主阀出油钢管 HOSE ASSEMBLY 29120018031 Y 1 12 O形圈GB3452.1-47.53.55G O-RING 4030000130 GB3452.1-47.53.55G Y 1 13 主阀出油钢管支架 BRACKET 29120018071 Y 1 14 螺栓GB16674-M1020EpZn-8.8 BOLT 4011000447 GB16674-M1020EpZn-8.8 Y 15 15 法兰总成M1M1HK-32 FLANGE HALF 4190000354 M1M1HK-32 Y 2 16 管夹 CLAMP 29120018081 Y 2 17 压板 PLATE 29120018091 Y 1 18 支撑管 PIPE 29120018101 Y 5 19 螺栓GB16674-M10110EpZn-8.8 SCREW 4011000532 GB16674-M10110EpZn-8.8 Y 5 20 回油管支架 BRACKET 29120018111 Y 1 21 压板 PLATE 29120018121 Y 1 22 管夹 CLAMP 29120018131 Y 2 23 合流块 BLOCK 29120018141 Y 1 24 螺栓GB16674-M1435EpZn-8.8 BOLT 4011000145 GB16674-M1435EpZn-8.8 Y 2 25 回油块 BLOCK 29120018191 Y 1 26 接头GEO28LMOMDCF NIPPLE 4120002985 Y 1 27 胶管F481CACE282816-700 HOSE ASSEMBLY 4120002984 Y 1 28 管夹 CLAMP 29120007671 Y 6 29 螺栓GB16674-M816EpZn-8.8 BOLT 4011000461 GB16674-M816EpZn-8.8 Y 9 30 扎丝LG13-ZS4250 CABLE TIE 4190000020 LG13-ZS4250 Y 15 31 固定板 ANCHOR PLATE 29120016351 Y 2 32 管夹 CLAMP 29120016741 Y 4 33 螺栓GB5782-M880EpZn-8.8 SCREW 4011000681 Y 4
34 垫圈GB97.1-8EpZn-300HV WASHER 4015000072 GB97.1-8EpZn-300HV Y 9
35 管夹 CLAMP 29030000041 ZL50G.6.53 Y 1
36 螺母GB6170-M10EpZn-8 NUT 4013000007 GB6170-M10EpZn-8 Y 1
37 垫圈GB96.1-10EpZn-300HV WASHER 4015000197 GB96.1-10EpZn-300HV Y 2
38 螺母GB6170-M8EpZn-8 NUT 4013000033 Y 7
39 接头GEO10LMOMDCF NIPPLE 4120002237 Y 2
40 螺栓GB16674-M1016EpZn-8.8 BOLT 4011000488 GB16674-M1016EpZn-8.8 Y 2
41 先导管支架 BRACKET 29120018221 Y 1
42 管夹 CLAMP 26370001971 N 1
-4041002417
43 螺栓GB5783-M1016EpZn-8.8 BOLT 4011000080 Y 1 44 胶管F481CACA121206-3000 HOSE ASSEMBLY 4120002962 Y 1 45 螺塞LGB135-01622 PLUG 4040000020 Y 1 46 O形圈LGB168-11324 O-RING 4041000780 Y 1 47 接头GEO18LMOMDA3C NIPPLE 4030000403 Y 2 48 接头GEO12LMOMDCF NIPPLE 4120002963 Y 1 49 回油钢管 PIPE 29120024561 Y 1 50 O形圈GB3452.1-15.01.80G O-RING 4030000501 Y 1
51 底板LGB160-2028 BRACKET 4041001240 Y 1
52 U形螺栓LGB159-12028 U-BOLT 4041001239 Y 1
53 直接头LGB120-02628 NIPPLE 4041000796 Y 1
54 O形圈LGB168-12331 O-RING 4041000779 Y 1
55 回油钢管支架 BRACKET 29120018271 Y 1
56 胶管F481CACF101005-1340 HOSE ASSEMBLY 4120001467 Y 1
57 过渡接头EW10LOMDA3C NIPPLE 4190000176 EW10LOMDA3C Y 1
58 变径接头RED22/10LOMDCF NIPPLE 4120002964 Y 1
59 接头GE22L11/16UNOMDA3C NIPPLE 4120001773 Y 1
60 接头GE10LREDOMDA3C NIPPLE 4190000180 GE10LREDOMDA3C Y 8
61 胶管F481CACF101005-3970 HOSE ASSEMBLY 4120002965 Y 1
62 胶管F481CACF101005-4110 HOSE ASSEMBLY 4120002966 Y 1
63 胶管F481CACF101005-4030 HOSE ASSEMBLY 4120002967 Y 1
64 胶管F481CACF101005-4300 HOSE ASSEMBLY 4120002968 Y 1
65 胶管F481CACF101005-4380 HOSE ASSEMBLY 4120002969 Y 1
66 支架 BRACKET 29120018991 Y 1
67 螺栓GB16674-M1060EpZn-8.8 BOLT 4011000279 GB16674-M1060EpZn-8.8 Y 3
68 先导阀总成5THF6E-06-2Y CONTROL LEVER 4120002959 Y 1
69 螺栓GB16674-M616EpZn-8.8 BOLT 4011000153 GB16674-M616EpZn-8.8 Y 4
70 接头GE12LR1/4EDOMDA3C NIPPLE 4190000362 GE12LR1/4EDOMDA3C Y 1
71 过渡接头 NIPPLE 26120002421 Y 1
72 矩形密封圈ED14X1.5X-16.511.61.5 SEALING 4030000698 Y 3
73 胶管F481CACF101005-1700 HOSE ASSEMBLY 4120001487 Y 1
74 O形圈GB3452.1-32.52.65G O-RING 4030000276 GB3452.1-32.52.65G Y 2
75 接头 NIPPLE 29120015081 Y 2
76 滤油器PLF-C3010 HYDRAULIC FLUID FILTER 4120001954 Y 1 77 固定板 ANCHOR PLATE 29120016021 Y 1 78 胶管F481CACF181808-1600 HOSE ASSEMBLY 4120002970 Y 1 79 先导控制阀支架 BRACKET 29120018291 Y 1 80 螺栓GB16674-M1235EpZn-8.8 BOLT 4011000477 GB16674-M1235EpZn-8.8 Y 3 81 先导控制阀组 VALVE 4120002734 Y 1 82 蓄能器ELM0.75 ACCUMULATOR 4120002830 Y 1 83 直接头 NIPPLE 29120020951 Y 1 84 O形圈GB3452.1-23.62.65G O-RING 4030000097 GB3452.1-23.62.65G Y 1 85 O形圈LGB168-11924 O-RING 4041000771 Y 1 86 胶管F481CACA101005-700 HOSE ASSEMBLY 4120002352 Y 1 87 螺钉GB70.1-M10110EpZn-8.8 SCREW 4014000173 Y 2
88 加高接头 NIPPLE 29120019191 Y 2
