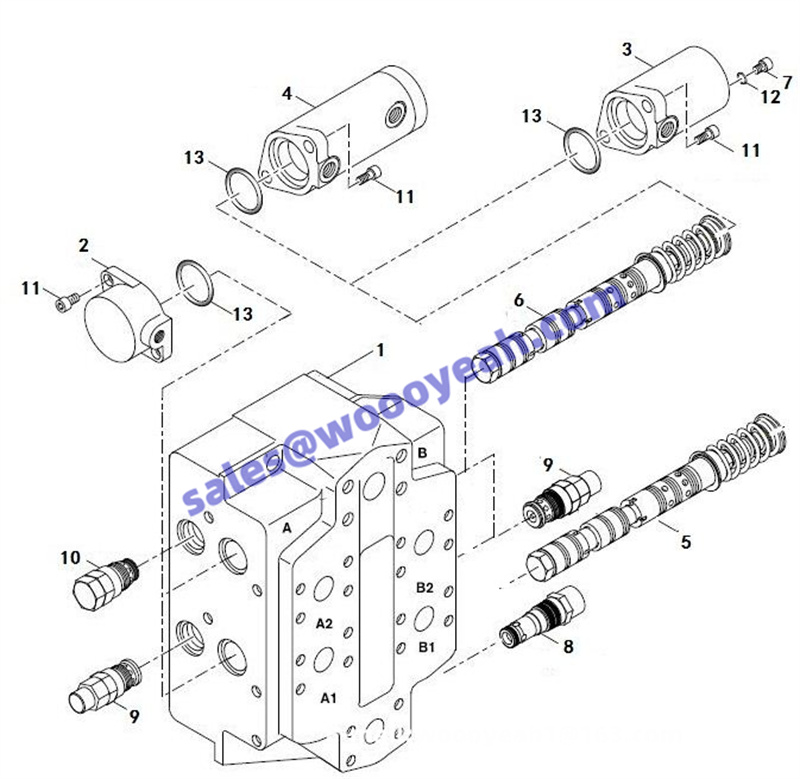

F11-4120002745:多路阀M1-32-02-39 control valve assembly(310007)

1 壳体M1-4268-00 Housing 4120002745001 N 1
2 端盖R900150772 COVER 4120002745002 Y 2
3 端盖R900150773 COVER 4120002745003 Y 1
4 端盖R900320478 COVER 4120002745004 Y 1
5 阀杆M1-4268-00 SLIDE 4120002745005 N 1
6 阀杆M1-4268-00 SLIDE 4120002745006 N 1
7 螺塞R901149265 PLUG 4120002745007 Y 1
8 阀R901224584 VALVE 4120002745008 Y 1
9 阀R930071773 VALVE 4120002745009 Y 3
10 阀R930072649 VALVE 4120002745010 Y 1
11 螺栓R900003043 SCREW 4120002745011 Y 8
12 O型圈R900309628-A6x10 O-RING 4120002745012 Y 1
13 O型圈R900309628-63,17 x 2,62 O-RING 4120002745013 Y 2
