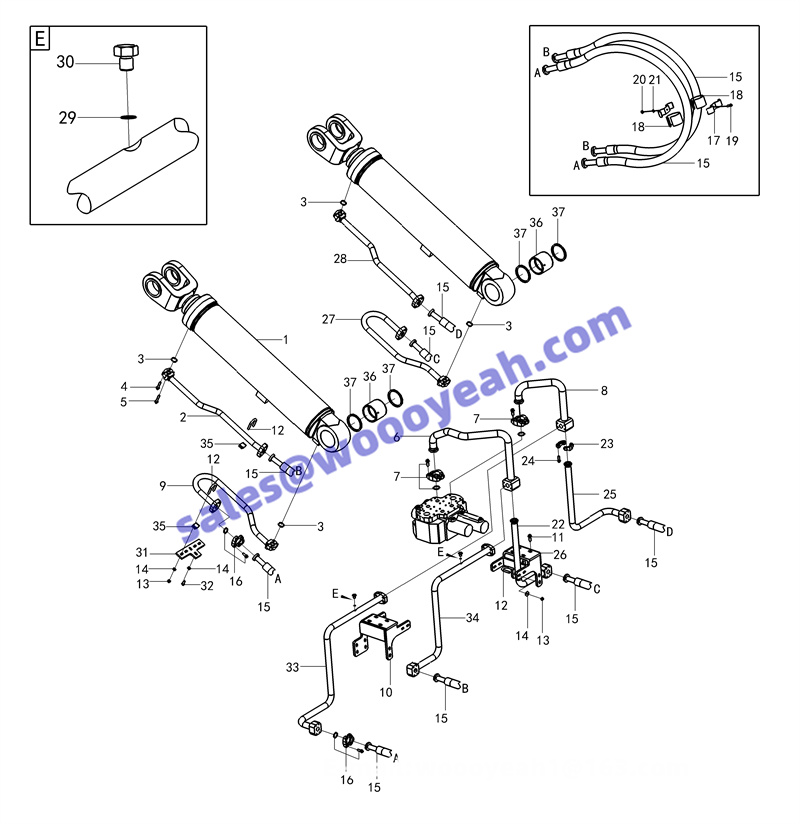

F3-2913001293:举升缸总成-40 Lifting cylinder system

1 动臂油缸HSGF-180100896-1428 LIFTING CYLINDER 4120002672 N 2
2 左动臂缸小腔钢管 PIPE 29130013181 Y 1
3 O形圈GB3452.1-32.53.55G O-RING 4030000026 GB3452.1-32.53.55G Y 8
4 螺栓GB16674-M1055EpZn-8.8 BOLT 4011000473 GB16674-M1055EpZn-8.8 Y 8
5 螺栓GB16674-M1050EpZn-8.8 BOLT 4011000309 GB16674-M1050EpZn-8.8 Y 8
6 阀至举升联小腔钢管 PIPE 29130013031 Y 1
7 法兰总成FHS65CF FLANGE HALF 4120003012 Y 2
8 阀至举升联大腔钢管 PIPE 29130012971 Y 1
9 左动臂缸大腔钢管 PIPE 29130013151 Y 1
10 左支架 BRACKET 29130013211 Y 1
11 螺栓GB16674-M1230EpZn-8.8 BOLT 4011000479 GB16674-M1230EpZn-8.8 Y 8
12 U形螺栓LGB159-13040 U-BOLT 4041001017 Y 14
13 螺母GB6170-M10EpZn-8 NUT 4013000007 GB6170-M10EpZn-8 Y 28
14 垫圈GB97.1-10EpZn-300HV WASHER 4015000162 Y 28
15 胶管F3726A6A161616-1620 HOSE ASSEMBLY 4120002971 Y 4
16 法兰总成M2M2HK-16 FLANGE HALF 4120001099 Y 8
17 管夹 CLAMP 29130010821 Y 4
18 缓冲套LGB123-0740 RUBBER SLEEVE 4041000869 Y 4
19 螺栓GB16674-M820EpZn-8.8 BOLT 4011000458 GB16674-M820EpZn-8.8 Y 2
20 螺母GB6170-M8EpZn-8 NUT 4013000033 Y 2
21 垫圈GB97.1-8EpZn-300HV WASHER 4015000072 GB97.1-8EpZn-300HV Y 2
22 举升联右小腔钢管 PIPE 29130013111 Y 1
23 分体法兰LGB117-310490 FLANGE HALF 4041000043 Y 4
24 螺栓GB16674-M1030EpZn-8.8 BOLT 4011000475 GB16674-M1030EpZn-8.8 Y 16
25 举升联右大腔钢管 PIPE 29130013091 Y 1
26 右支架 BRACKET 29130013251 Y 1
27 右动臂缸大腔钢管 PIPE 29130013171 Y 1
28 右动臂缸小腔钢管 PIPE 29130013201 Y 1
29 螺塞LGB135-01422 PLUG 4041000774 Y 3
30 O形圈LGB168-11124 O-RING 4041000767 Y 3
31 固定板 ANCHOR PLATE 29130013141 Y 2
32 螺栓GB5783-M1025EpZn-8.8 BOLT 4011000082 GB5783-M1025EpZn-8.8 Y 4
33 举升联左大腔钢管 PIPE 29130013051 Y 1
34 举升联左小腔钢管 PIPE 29130013071 Y 1
35 底板LGB160-3040 BRACKET 4041001018 Y 4
36 举升缸后端衬套 SLEEVE 29130012991 Y 2
