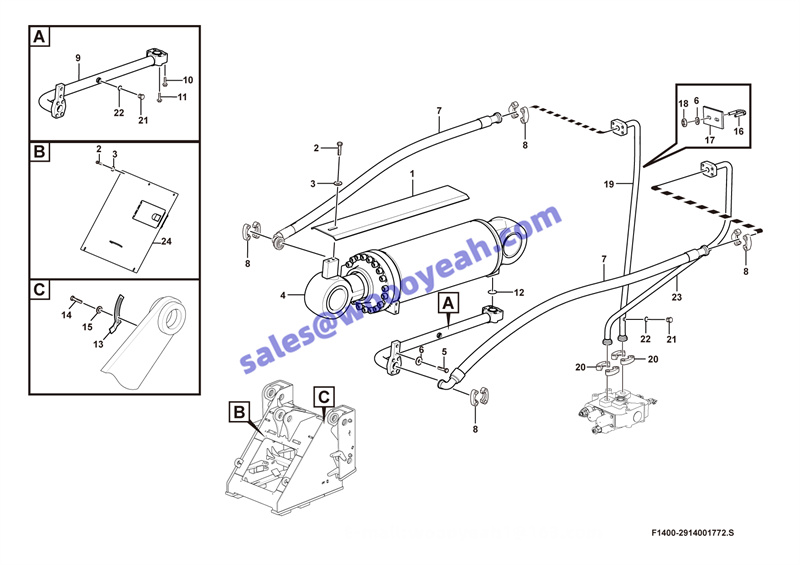

F1400-2914001772.S:转斗缸总成-42 Tilt cylinder assembly

1 放平护板 PLATE 29140016171 Y 1
2 螺栓GB5783-M1025EpZn-8.8 BOLT 4011000082 GB5783-M1025EpZn-8.8 Y 8
3 垫圈GB96.1-10EpZn-300HV WASHER 4015000197 GB96.1-10EpZn-300HV Y 8
4 转斗油缸HSGF-210110557-1138B TILT CYLINDER 4120005162 Y 1
5 螺栓GB5783-M1235EpZn-8.8 BOLT 4011000090 GB5783-M1235EpZn-8.8 Y 2
6 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 8
7 胶管F7316A6N202020-1450 HOSE ASSEMBLY 4120002761 Y 2
8 法兰总成M2M2HK-20 FLANGE HALF 4190000226 M2M2HK-20 Y 4
9 转斗缸大腔钢管 PIPE 29140011571 Y 1
10 E-螺栓GB16674-M1250EpZn-8.8 SCREW 4011000165 GB16674-M1250EpZn-8.8 Y 2
11 螺栓GB16674-M1255EpZn-8.8 BOLT 4011000478 GB16674-M1255EpZn-8.8 Y 2
12 O形圈GB3452.1-37.53.55G O-RING 4030000029 GB3452.1-37.53.55G Y 1
-4041000878
13 动臂指示板 INDICATOR PLATE 29140016451 Y 1
14 螺栓GB5783-M816EpZn-8.8 BOLT 4011000102 GB5783-M816EpZn-8.8 Y 2
15 垫圈GB96.1-8EpZn-300HV WASHER 4015000256 GB96.1-8EpZn-300HV Y 2
16 U形螺栓LGB159-14254 U-BOLT 4041000954 Y 2
17 底板LGB160-4254 BRACKET 4041000955 Y 2
18 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 4
19 转斗联小腔钢管 PIPE 29140011492 Y 1
20 法兰总成FHS65CF FLANGE HALF 4120003012 Y 2
21 螺塞LGB135-01422 PLUG 4041000774 Y 2
22 O形圈LGB168-11124 O-RING 4041000767 Y 2
23 转斗联大腔钢管 PIPE 29140011502 Y 1
24 前盖板 COVER PLATE 29140011671 Y 1
