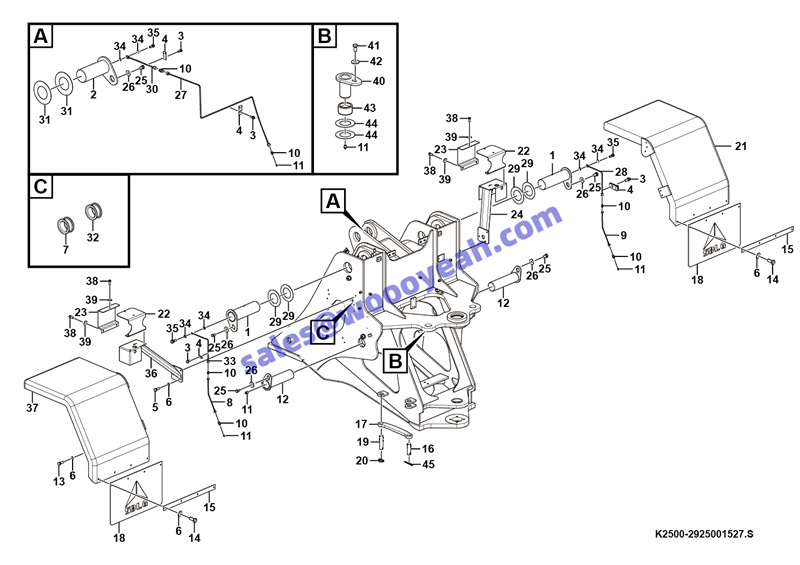

K2500-2925001527.S:前车架附件-55 Front frame system

1 销轴LGB301-110195N360-1001G PIN 4043000747 Y 2
2 销轴LGB301-100140N255-1601G PIN 4043000746 Y 1
3 螺栓GB16674-M820EpZn-8.8 BOLT 4011000458 GB16674-M820EpZn-8.8 Y 4
4 压板 Plate 29250013741 Y 8
5 螺栓GB5783-M1030EpZn-8.8 BOLT 4011000084 GB5783-M1030EpZn-8.8 Y 6
6 垫圈GB96.1-10EpZn-300HV WASHER 4015000197 GB96.1-10EpZn-300HV Y 24
7 走线胶套 RUBBER SLEEVE 29250008061 Y 2
8 左下动臂润滑油管 Lubricating pipe 29250015281 Y 1
9 下转斗缸润滑油管 Lubricating pipe 29250015321 Y 1
10 接头 NIPPLE 29250014121 Y 6
11 油杯JB7940.1-M101 LUBRICATING NIPPLE 4030000065 Y 7 12 销轴LGB301-95195N360-1001G PIN 4043000745 Y 2 13 螺栓GB5783-M1040EpZn-8.8 BOLT 4011000184 GB5783-M1040EpZn-8.8 Y 10 14 螺栓GB5783-M1025EpZn-8.8 BOLT 4011000082 GB5783-M1025EpZn-8.8 Y 8 15 压板 PLATE 29250009341 Y 2 16 锁定杆前销轴 PIN 29270000121 Y 1 17 锁定杆 TRANSPORT LOCK 29250009131 Y 1 18 橡胶板 RUBBER CUSHION 29250009331 Y 2 19 锁定杆后销轴 PIN 29270000091 Y 1 20 卡环 LOCK RING 29270000081 ZL50G.11.14 Y 1 21 右挡泥瓦 FRONT FENDER 29250009111 Y 1 22 灯架护板 Protecting plate 29250016811 Y 2 23 照灯网板 PROTECTING PLATE 29250011021 Y 2 24 右灯架 Lantern bracket 29250016791 Y 1 25 螺栓GB5783-M1630EpZn-8.8 BOLT 4011000094 GB5783-M1630EpZn-8.8 Y 5 26 垫圈LGB001-16 WASHER 4040000002 ZL50F.7-14 Y 5 27 右下动臂润滑油管 Lubricating pipe 29250015301 Y 1 28 右上动臂润滑油管 PIPE 29250015231 Y 1 29 垫片LGB303-1101801 SHIM 4043000043 LGB303-1101801 Y 4 30 上转斗缸润滑油管 PIPE 29250015251 Y 1 31 垫片LGB303-1001801 SHIM 4043000353 Y 2 32 走线胶套 RUBBER SLEEVE 29250001351 Y 2 33 左上动臂润滑油管 PIPE 29250015201 Y 1 34 垫片 SHIM 29250000301 Y 6 35 通油螺栓 BOLT 29250000291 Y 3 36 左灯架 Lantern bracket 29250016771 Y 1 37 左挡泥瓦 FRONT FENDER 29250009041 Y 1 38 螺栓GB5783-M820EpZn-8.8 BOLT 4011000105 Y 10
39 垫圈GB96.1-8EpZn-300HV WASHER 4015000256 GB96.1-8EpZn-300HV Y 10
40 前转向销轴 PIN 29250009221 Y 2
41 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M1225EpZn-8.8 Y 2
42 垫圈GB96.1-12EpZn-300HV WASHER 4015000186 GB96.1-12EpZn-300HV Y 2
43 轴套LGB302-5036A2 BUSHING 4043000438 Y 2 44 垫片LGB303-50901 SHIM 4043000032 LGB303-50901 Y 4 45 开口销GB91-6.363EpZn-Q235A SPLIT PIN 4016000113 Y 1
