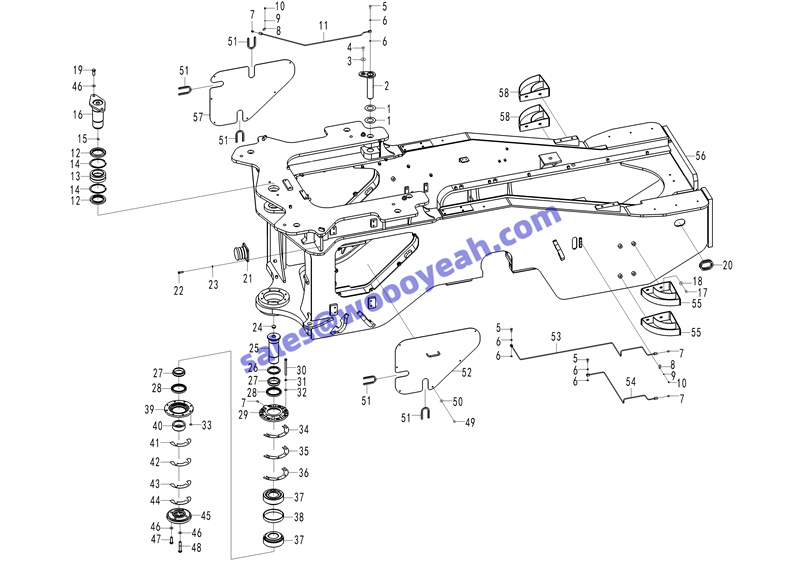

K2-2927001150/2926001600:后车架及附件-56 Rear frame system

1 垫片LGB303-50901 SHIM 4043000032 LGB303-50901 Y 4
2 转向销轴 PIN 29270009581 Y 2
3 垫圈LGB001-12 WASHER 4040000001 LGB001-12 Y 2
4 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M1225EpZn-8.8 Y 2
5 通油螺栓 BOLT 29250000291 Y 4
6 垫片 SHIM 29250000301 Y 8
7 油杯JB7940.1-M101 LUBRICATING NIPPLE 4030000065 Y 5 8 管夹 CLAMP 29250000311 Y 4 9 垫圈GB93-6-65Mn SPRING WASHER 4015000035 GB93-6-65Mn Y 8 10 螺钉GB818-M610EpZn-4.8 SCREW 4014000024 Y 8
11 转向润滑油管 LUBE OIL HOSE 29270009621 Y 2
12 防尘圈 SEALING RING 29270009461 Y 2
13 关节轴承GB9163-GE90ES-2RS SPHERICAL PLAIN BEARING 4021000233 Y 1
14 挡圈GB893.1-130-65Mn RETAINING RING 4015000011 GB893.1-130-65Mn Y 2
15 油杯JB7940.2-90°M101 LUBRICATING NIPPLE 4030000199 JB7940.2-90°M101 Y 1
16 销轴 PIN 29270009381 Y 1
17 螺栓GB5783-M1025EpZn-8.8 BOLT 4011000082 GB5783-M1025EpZn-8.8 Y 8
18 垫圈GB96.1-10EpZn-300HV WASHER 4015000197 GB96.1-10EpZn-300HV Y 8
19 螺栓GB5783-M1645EpZn-8.8 BOLT 4011000205 GB5783-M1645EpZn-8.8 Y 2
20 走线胶套 RUBBER SLEEVE 29270009101 Y 1
21 缓冲器 ABSORBER 4190001829 Y 2
22 螺栓GB5783-M1035EpZn-8.8 BOLT 4011000085 GB5783-M1035EpZn-8.8 Y 8
23 垫圈GB97.1-10EpZn-300HV WASHER 4015000162 Y 8
24 塑料塞 PLASTIC PLUG 29270009421 Y 1
25 销 PIN 29270009431 Y 1
26 隔套 SLEEVE 29270009441 Y 1
27 套 SLEEVE 29270009451 Y 2
28 旋转轴唇形密封圈GB9877.1-B10012512 SEALING RING 4030000260 GB9877.1-B10012512 Y 2
29 盘 DISC 29270009471 Y 1
30 螺栓GB5782-M12150EpZn-8.8 SCREW 4011000947 Y 8 31 垫圈GB93-12-65Mn SPRING WASHER 4015000026 GB93-12-65Mn Y 8 32 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 8 33 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 8 34 垫片 SHIM 29270009481 Y 2 -4043002664 35 垫片 SHIM 29270009501 Y 2 -4043002667 36 垫片 SHIM 29270009491 Y 2 -4043002666 37 滚动轴承GB297-32316 ROLLER BEARING 4021000231 Y 2 38 隔套 SLEEVE 29270009911 Y 1 39 盘 DISC 29270009511 Y 1 40 套 SLEEVE 29270009521 Y 1 41 垫片 SHIM 29270009531 Y 2 -4043002668 42 垫片 SHIM 29270009561 Y 2 -4043002671 43 垫片 SHIM 29270009551 Y 2 -4043002670 44 垫片 SHIM 29270009541 Y 2 -4043002669 45 盘 DISC 29270009571 Y 1 46 垫圈GB97.1-16EpZn-300HV WASHER 4015000181 GB97.1-16EpZn-300HV Y 10 47 螺栓GB5783-M1650EpZn-8.8 SCREW 4011000269 GB5783-M1650EpZn-8.8 Y 4 48 螺栓GB5782-M1690EpZn-8.8 BOLT 4011000069 GB5782-M1690EpZn-8.8 Y 4 49 螺栓GB5783-M825EpZn-8.8 BOLT 4011000106 GB5783-M8*25EpZn-8.8 Y 12
50 垫圈GB96.1-8EpZn-300HV WASHER 4015000256 GB96.1-8EpZn-300HV Y 12
51 卡子胶条 SEALING STRIP 29290009451 Y 5
52 左挡板 COVER PLATE 29270011311 Y 1
53 润滑油管 LUBE OIL HOSE 29270009611 Y 2
54 润滑油管 LUBE OIL HOSE 29270009601 Y 1
55 圆形踏脚 FOOT STEP 29270011431 Y 2
56 后车架 REAR FRAME 29260016001 Y 1
57 右挡板 COVER PLATE 29270011321 Y 1
58 圆形踏脚 FOOT STEP 29270011441 Y 2
