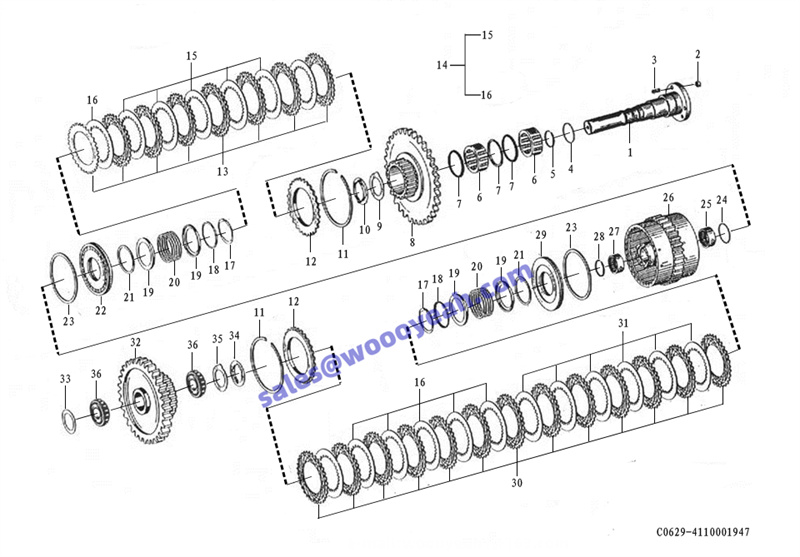

C0629-4110001947:YD13 152 KR+K2 离合器部件（330101）-24 shaft and clutch assembly(330101)

1 轴 YD13 352 009 (152) SHAFT 4110000076361 Y 1
2 螺母GB6170-M8-8 NUT 4013000162 GB6170-M8-8 Y 3
3 螺柱GB898-AM18-M181.580-8.8 STUD 4012000007 GB898-AM18-M181.580-8.8 Y 3
4 O形圈 0634 313 536 493 O-RING 4110000076380 Y 1 5 搭扣密封环YD13 351 027 SEALING RING 4110000076050 Y 3 6 滚柱轴承 YD13 352 015 BEARING 4110000076321 Y 1 7 挡圈YD13352010 RETAINING RING 4110000076280 Y 3 8 齿轮(K2)) YD13 252 007 GEAR 4110000145074 Y 1 9 承磨垫 0730 150 779 DUP WASHER 4110000076247 Y 1 10 止动片4644351094 STOP PLATE 4110000076199 Y 1 11 弹性挡圈0730 513 180 RETAINING RING 4110000076296 N 2 12 承压板4642308185 ANCHOR PLATE 4110000076190 Y 2 13 外摩擦片0501 309 322 S=2.0 FRICTION DISC 4110000145078 N 9 14 内摩擦片 0769 129 011 S=1,5/2,0/2,5 FRICTION DISC 4110000076074 N 1 15 内摩擦片 4642 308 330 S=1.5 FRICTION DISC 4110000076068 Y 6 16 内摩擦片 4642 308 332 S=2.0 FRICTION DISC 4110000076069 Y 9 17 挡圈10013886 RETAINING RING 4110000076298 Y 2 -4110001394117 18 导向环4642308084 GUIDE RING 7200001555 P4WG200-126 Y 2 19 导向环4642308083 RETAINING RING 4110000076189 Y 4 20 压力弹簧0732041183 TENSION SPRING 4110000076251 Y 2 21 异形密封环 0750 112 140 SEALING RING 4110000076353 Y 2 22 活塞 4644 353 051 CYLINDER PISTON 4110000076324 Y 1 24 弹性挡圈 0730 513 611 RETAINING RING 4110000076295 Y 1 25 滚针轴承0635303204 NEEDLE BEARING 4110000076229 Y 1 26 离合器组件YD13 251 002 CLUTCH 4110000145073 Y 1 27 滚针轴承 0750 115 182 354220 NEEDLE BEARING 4110000076060 Y 1 28 弹性挡圈 0730 513 610 RETAINING RING 4110000076294 Y 1 30 外摩擦片 0501 309 329 S=2,0 FRICTION DISC 4110000076067 Y 11 31 内摩擦片 4642 308 331 S=2.0 FRICTION DISC 4110000145086 N 1 32 齿轮 YD13 351 006(KV/R) Z=50 GEAR 4110000076287 Y 1 33 调整垫片0769120468 SHIM 4110000076270 N 1 34 止动片4642308555 EXTENSION BAR 4110000076191 Y 1 35 承磨垫 0730 150 774 DUP WASHER 4110000076246 Y 1 -4110000076428 36 轴承 YD13 351 007 WTB3564*38 BEARING 4110000076053 Y 1
