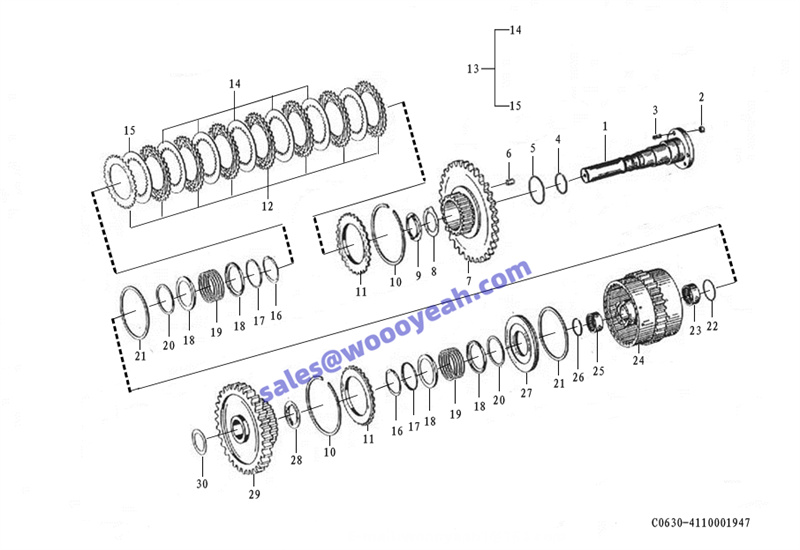

C0630-4110001947:YD13 153 K4+K3 离合器部件（330101）-25 shaft and clutch assembly(330101)

1 轴 YD13 353 016 SHAFT 4110000145075 Y 1
2 螺母GB6170-M8-8 NUT 4013000162 GB6170-M8-8 Y 3
3 螺柱GB898-M818-8.8 STUD 4012000042 Y 3 4 搭扣密封环YD13 351 027H SEALING RING 4110000076258 Y 2 -4110000076050 5 O形圈 0634 313 536 493 O-RING 4110000076380 Y 1
6 滚子组 0750 119 048 ROLLER 4110000076322 Y 1
7 K3齿轮组件 YD13 253 005 GEAR 4110000145077 Y 1
8 承磨垫 0730 150 779 DUP WASHER 4110000076247 Y 1
9 止动片4644351094 STOP PLATE 4110000076199 Y 1
10 弹性挡圈0730 513 180 RETAINING RING 4110000076296 N 1
11 承压板4642308185 ANCHOR PLATE 4110000076190 Y 1
12 外摩擦片0501 309 322 S=2.0 FRICTION DISC 4110000145078 N 9
13 内摩擦片 0769 129 011 S=1,5/2,0/2,5 FRICTION DISC 4110000076074 N 1
14 内摩擦片 4642 308 332 S=2.0 FRICTION DISC 4110000076069 Y 1
15 内摩擦片 4642 308 330 S=1.5 FRICTION DISC 4110000076068 Y 6
16 挡圈10013886 RETAINING RING 4110000076298 Y 1
-4110001394117
17 导向环4642308084 GUIDE RING 7200001555 P4WG200-126 Y 1
18 导向环4642308083 RETAINING RING 4110000076189 Y 2
19 压力弹簧0732041183 TENSION SPRING 4110000076251 Y 1
20 异形密封环 0750 112 140 SEALING RING 4110000076353 Y 1
21 异形密封环 0750 112 141 SEALING RING 4110000076352 Y 1
22 弹性挡圈 0730 513 611 RETAINING RING 4110000076295 Y 1
23 滚针轴承0635303204 NEEDLE BEARING 4110000076229 Y 1
24 离合器组件 YD13 253 008 CLUTCH 4110000145079 Y 1
25 滚针轴承0750115182 NEEDLE BEARING 7200001637 P4WG200-208 Y 1
26 弹性挡圈 0730 513 610 RETAINING RING 4110000076294 Y 1
27 活塞 4644 353 051 CYLINDER PISTON 4110000076324 Y 1
28 止动片4642308555 EXTENSION BAR 4110000076191 Y 1
29 隔套YD13 353 009 SLEEVE 4110000145080 Y 1
30 调整垫片0769120468 SHIM 4110000076270 N 1
