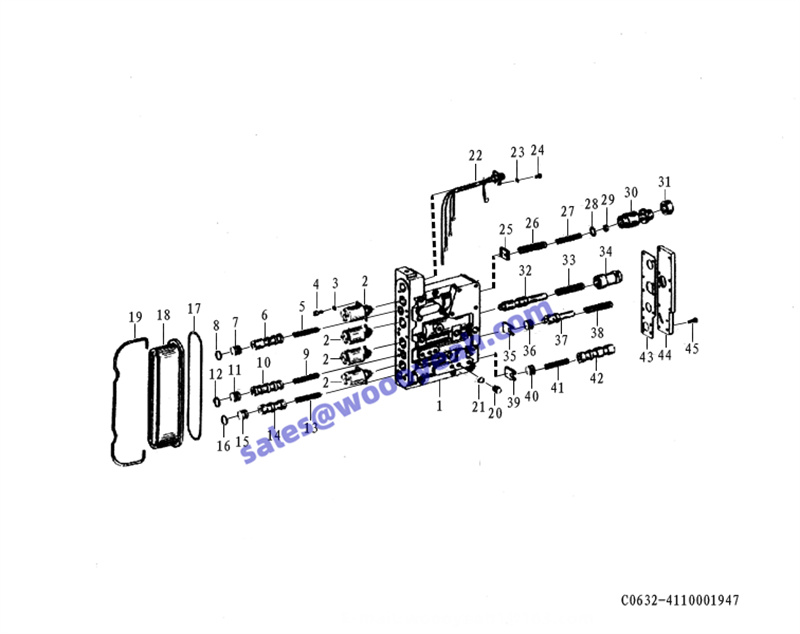

C0632-4110001947:4644 159 操纵阀部件（330101）-27 shift control valve(330101)

1 阀体4642 306 152 Valve body 4110000076312 N 1
2 电磁阀0501315338 SOLENOID VALVE 4110001394157 N 4
3 垫圈GB859-5-65Mn WASHER 4015000286 Y 8
4 螺钉GB70.1-M512EpZn-8.8 SCREW 4014000473 N 8 6 阀芯4642306094 valve rod 4110000076184 N 1 8 O 形圈0634303118 O-RING 4110000076216 Y 1 9 弹簧0732041254 Spring 4110000076253 N 1 10 阀芯4642306093 valve rod 4110000076183 N 1 11 挡销4620306252 pin 4110000076175 N 1 14 阀芯4642306096 valve rod 4110000076186 N 1 17 O形圈164.25.7 0634 303 951H O-RING 4110001905057 Y 1
18 电磁阀罩壳4620306259 valve shelf 4110001394162 N 1
19 弓夹4620306241 Clamp 4110000076171 N 1
20 螺塞JB1000-M101EpZn-35 PLUG 4030000311 JB1000-M101-35 Y 6
21 紫铜垫圈10Q20-03A-02 Washer 4110001905018 N 6
22 电缆组件4620 206 019 WIRING HARNESS 4110001321374 Y 1
23 弹性垫圈20000936 SPRING WASHER 4110000367119 Y 4
24 螺钉GB818-M412EpZn-4.8 SCREW 4014000021 GB818-M412EpZn-4.8 Y 4
25 锁片4620306248 LOCKING PLATE 4110000076174 N 1
26 弹簧0732 040 838 Spring 4110000076292 N 1
27 弹簧0732040837 Spring 4110000076248 N 1
28 垫片O769120747 WASHER 4110000076122 N 6
29 隔套0730061778 casing 4110000076244 N 1
30 阀芯4620306245 valve rod 4110000076172 N 1
31 衬套4620 306 247 BUSHING 4110000076285 N 1
32 阀芯 4620 306 413 valve rod 4110000076314 N 1
33 弹簧0732 041 390 Spring 4110000367122 N 1
34 阀芯4620306414 valve rod 4110001394152 N 1
35 固定板4644306241 anchor plate 4110000076194 N 1
36 挡销4644306549 pin 4110001394153 N 1
37 阀芯4620306255 valve rod 4110000076176 N 1
38 弹簧0732041154 Spring 4110000076250 N 1
39 锁片4642306049 LOCKING PLATE 4110000076180 N 1
42 阀芯4642306095 valve rod 4110001394154 N 1
43 纸垫4644 306 486 Gasket 4110000367357 Y 1
44 盖4620 306 415 Cover 4110000076318 N 1
45 螺栓GB5783-M5*16EpZn-8.8 Screw 4011001218 Y 11
