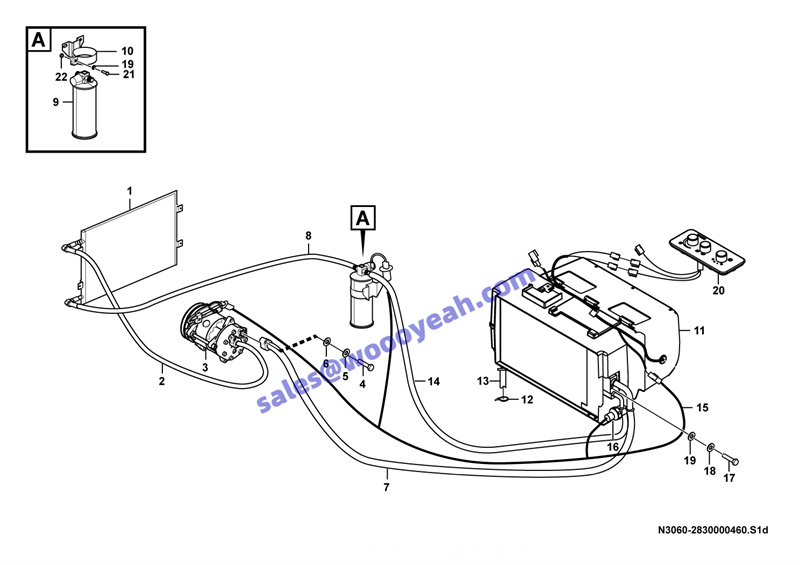

N3060-2830000460.S1d:压路机空调系统-88 Air conditioning system(330112)

1 冷凝器总成 CONDENSER 4190002917 Y 1
2 压冷管 HOSE 4190002921 Y 1
3 压缩机 COMPRESSOR 4190002758 Y 1
4 螺栓GB5786-M101.2535EpZn-8.8 SCREW 4011001074 Y 1
5 垫圈GB93-10-65Mn SPRING WASHER 4015000025 GB93-10-65Mn Y 1
6 垫圈GB97.1-10EpZn-300HV WASHER 4015000162 Y 1
7 蒸压管 PIPE 4190002741 Y 1
8 冷储管 HOSE 4190002922 Y 1
9 ZG30.06XG储液罐 RESERVOIR 4130000419 ZG30.06XG-R090800 N 1
(4130000419R)
(4130000419A)
10 储液器卡子 MOULDING 4190000810 Y 1
11 蒸发器总成 EVAPORATOR 4190002757 N 1
-4130002911
12 扎丝 LG13-ZS4185 CABLE TIE 4019000023 D08034-00519 Y 2 13 排水管组件 WATER PIPE 4190002766 Y 2 14 储蒸管 HOSE 4190002919 Y 1 15 连接线束 WIRING HARNESS 4190002918 Y 1 16 压力开关 SWITCH 4190002765 Y 1 17 螺栓GB5783-M625EpZn-8.8 BOLT 4011000276 GB5783-M625EpZn-8.8 Y 3 18 垫圈GB93-6-65Mn SPRING WASHER 4015000035 GB93-6-65Mn Y 3 19 垫圈GB97.1-6EpZn-300HV WASHER 4015000207 Y 4 20 控制面板 PANEL 4190002760 N 1 -4130002912 21 螺栓GB5783-M635EpZn-8.8 SCREW 4011000286 GB5783-M6*35EpZn-8.8 Y 1
22 螺母GB889.1-M6EpZn-8 NUT 4013000211 Y 1
23 压力开关T1911 PRESSURE SWITCH 4130000419001 Y 1
